Semi auto CC cushion filling machine, four nozzles

Short Description:

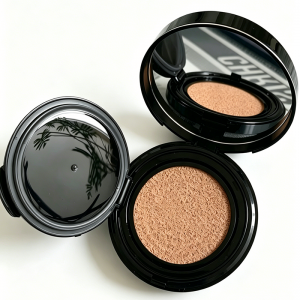

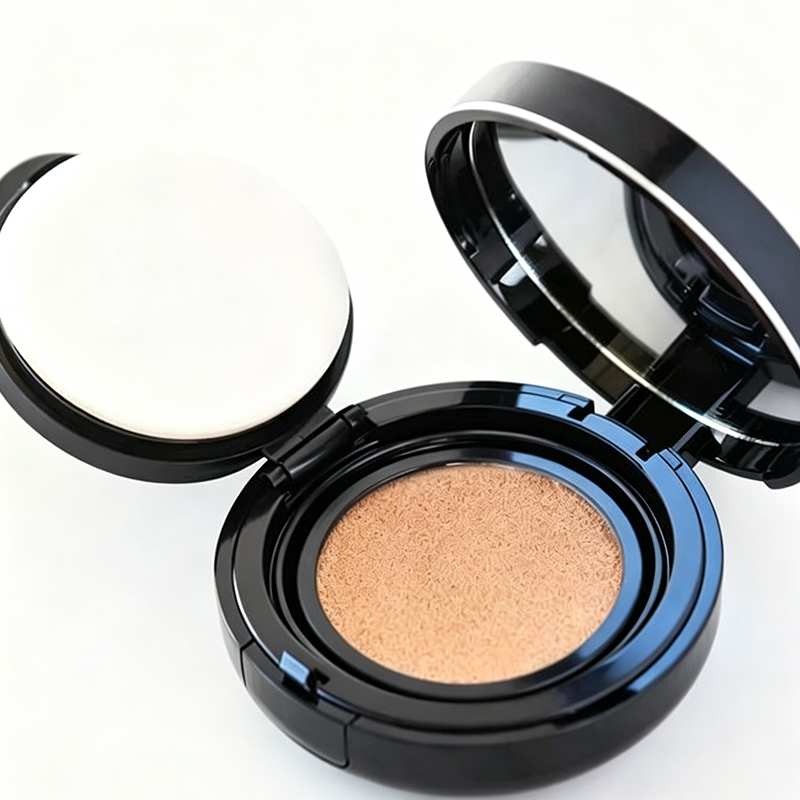

Application: This machine is widely used for air cushion BB cream and CC cream’s filling. It suits for both single color and multi-color filling.

Features:

1. The whole machine is driven by servo motors for high positioning accuracy.

2. Functions: manual loading of case with sponge, automatic filling, automatic surface treating, automatic overflow detection, automatic ring feeding, automatic ring pressing, automatic defective product rejection and automatic finished product take out.

3. Compatible with single-color and double-color production. Paired with specially designed molds to realize high-efficiency production.

4. The filling system features a quick-release design for easy product changeover and cleaning.

5. Adopts circulating feeding platform with circular guide rail to greatly improve production capacity.

Technical Specifications

1. Voltage: 220V, Power: 8kW

2. Machine dimensions: 3500×2300×1960mm

3. Working air pressure: 0.6~0.8 MPa

4. Hopper volume: 20~50L

5. Filling volume: 3~30ml

6. Filling accuracy: ±0.5%

7. Production capacity: 32~44 pcs/min

8. Inner container diameter: Φ25~68mm

9. Filling nozzles can be customized and replaced

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Item	Specification
Model	Semi Automatic Four Nozzle Cushion Filling Machine
Machine Version	With Sponge / Without Sponge
Suitable Compact Size	Ø25–68 mm (Customizable)
Filling Volume	3–30 ml
Filling Accuracy	±0.5%
Hopper Capacity	20–50 L
Filling System	4 Servo Filling Nozzles
Filling Pattern	Single Color / Dual Color / Customized
Production Capacity	32–44 pcs/min
Voltage	AC220V, 1P, 50/60Hz
Power	8 KW
Air Pressure	0.6–0.8 MPa
Machine Size	3500 × 2300 × 1960 mm

Application

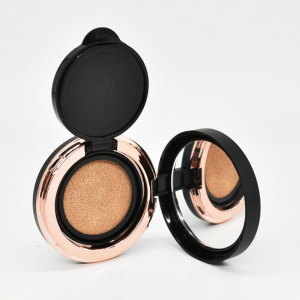

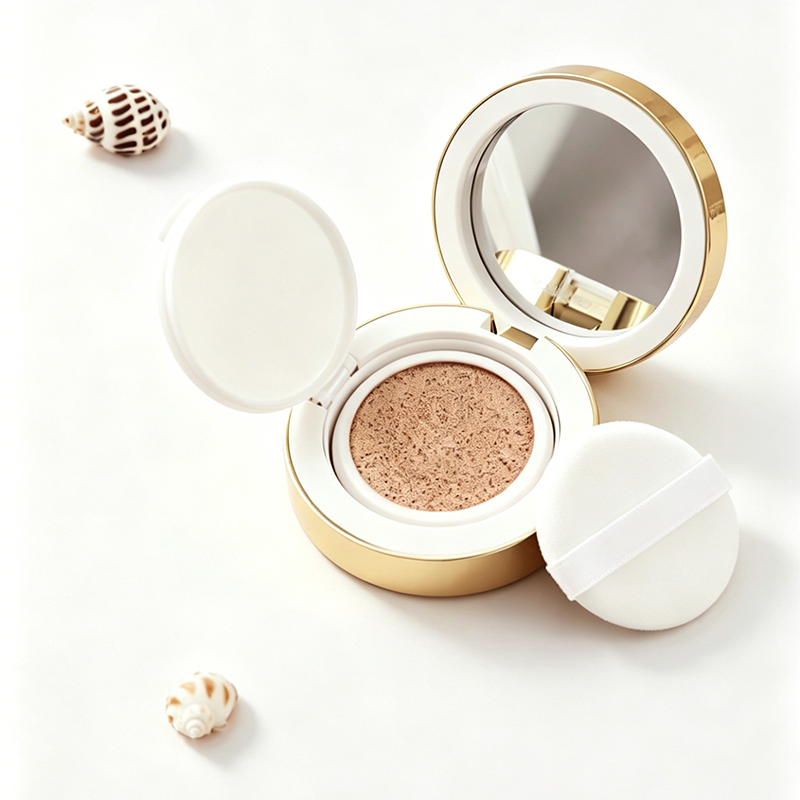

The GIENICOS Semi Automatic Four Nozzle Cushion Filling Machine is developed for manufacturers seeking higher productivity in air cushion cosmetic production. It is suitable for filling BB Cream, CC Cream, Cushion Foundation, Concealer, Cream Blush, Highlighter and other liquid or cream cosmetic products.

To match different manufacturing processes, the machine is available in With Sponge and Without Sponge versions. The four-nozzle filling system enables simultaneous filling of multiple products, making it an efficient solution for medium and large batch production.

Its flexible configuration makes it ideal for cosmetic OEM/ODM manufacturers, private label producers and international beauty brands.

1 Semi auto CC cushion filling machine, four nozzles

2 Semi auto CC cushion filling machine, four nozzles

3 Semi auto CC cushion filling machine, four nozzles

4 Semi auto CC cushion filling machine, four nozzles

5 Semi auto CC cushion filling machine, four nozzles

6 Semi auto CC cushion filling machine, four nozzles

Features

♦ Available in With Sponge and Without Sponge configurations to fit different production workflows.

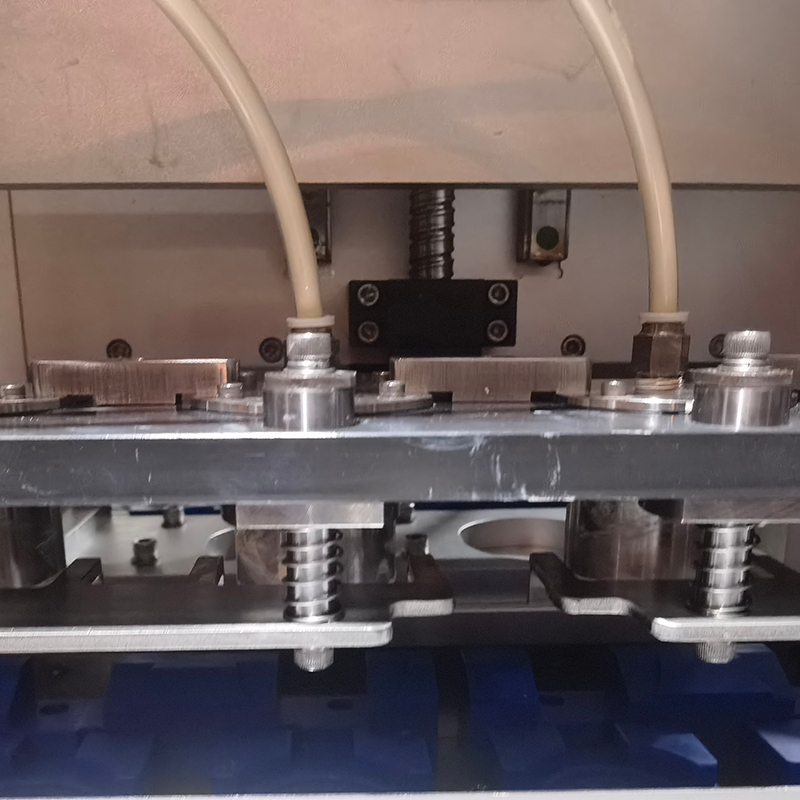

♦ Four independent servo-controlled filling nozzles ensure fast, uniform and stable filling performance.

♦ Circular guide rail conveyor provides continuous product transportation for higher production efficiency.

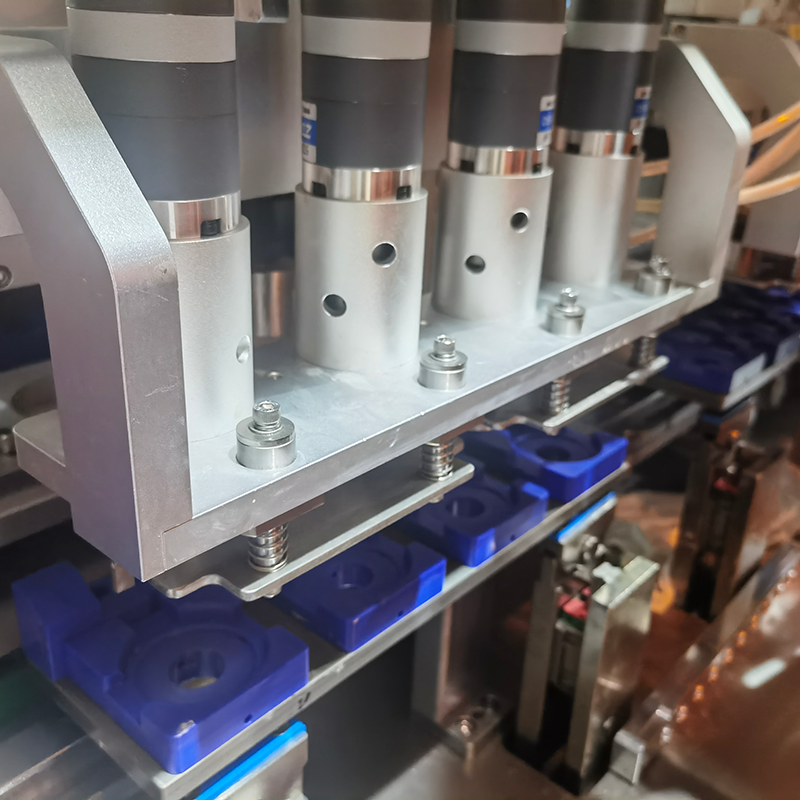

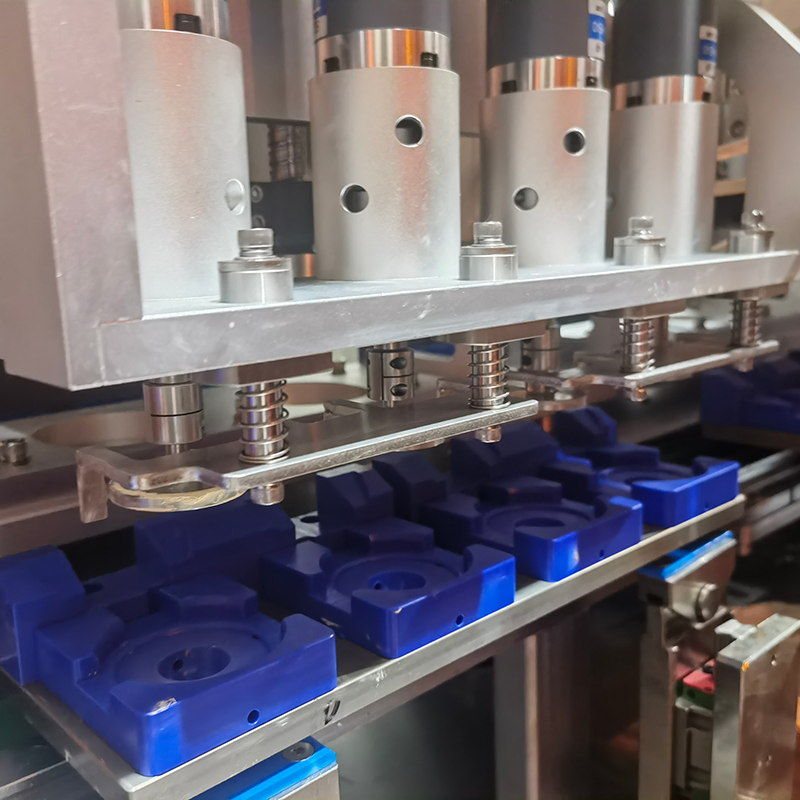

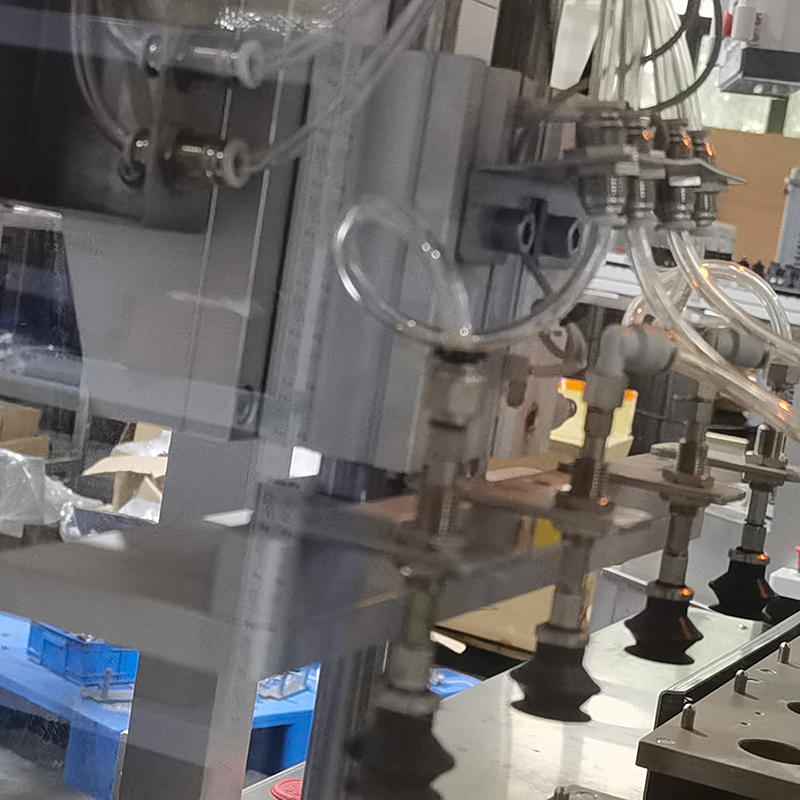

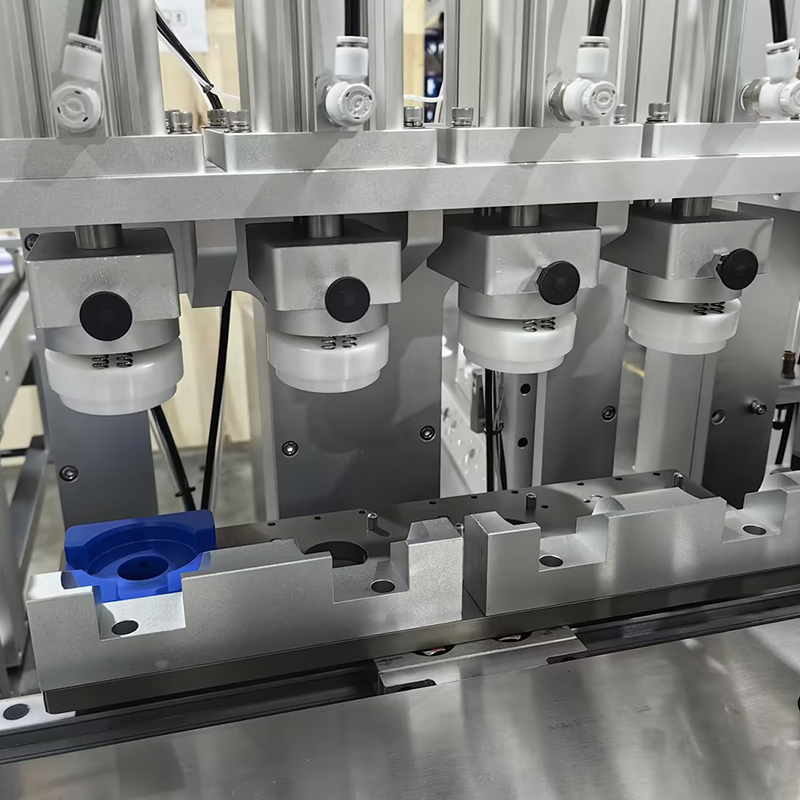

♦ Integrated automatic functions include cream filling, surface leveling, overflow inspection, ring feeding, ring pressing, defective product rejection and finished product unloading.

♦ Supports customized molds and interchangeable nozzles for different compact sizes and filling designs.

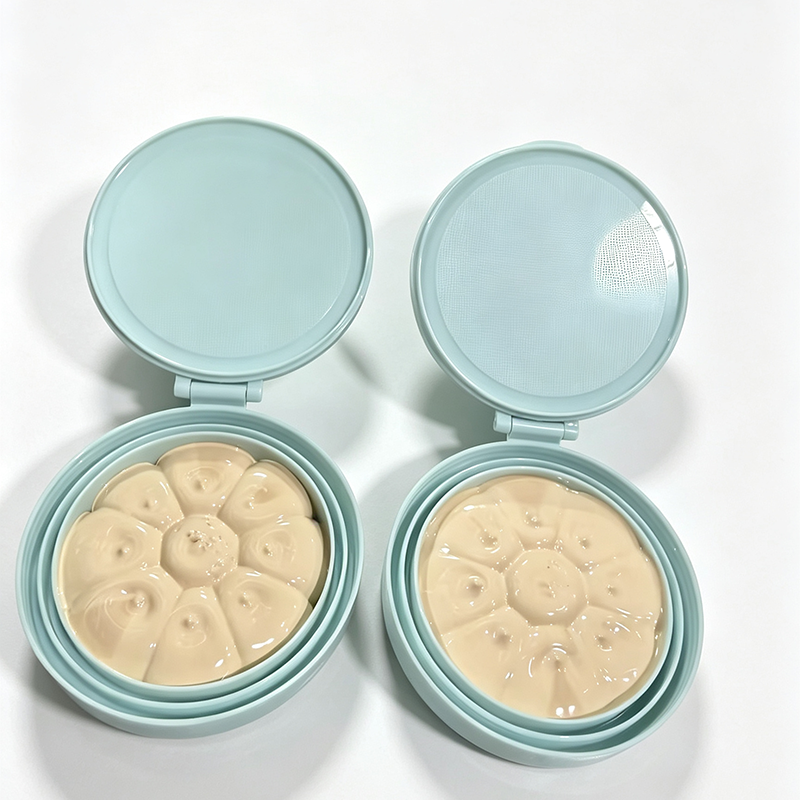

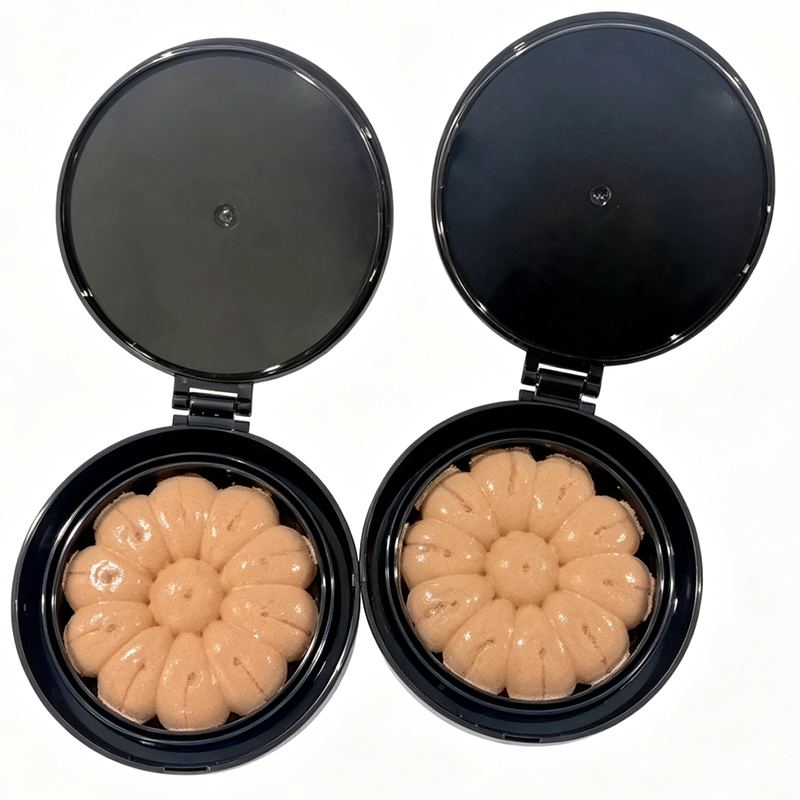

♦ Designed for single-color, dual-color and decorative filling effects to satisfy various cosmetic product requirements.

♦ Modular filling unit allows convenient maintenance and quick cleaning during product changeovers.

♦ Cosmetic-contact parts are manufactured from SUS316L stainless steel to ensure hygienic production.

Why choose this machine?

Optimized for Higher Output：The four-nozzle filling system fills multiple cushion compacts simultaneously, increasing throughput while maintaining stable production quality.

Adaptable to Different Manufacturing Processes：Whether your production requires filling with sponge or without sponge, the machine offers dedicated configurations to simplify your manufacturing workflow.

Stable Quality with Intelligent Inspection：Integrated overflow detection and automatic reject functions help minimize defective products and improve production consistency.

Greater Production Flexibility：Interchangeable molds and customizable filling nozzles make it easy to switch between different compact sizes and create a variety of filling effects for diverse product lines.

Reduced Maintenance Time:The modular filling structure is designed for quick disassembly, allowing faster cleaning and shorter changeover time between different formulations.

Built for Professional Cosmetic Manufacturers:Developed specifically for air cushion cosmetics, the machine combines precision filling, efficient automation and reliable performance, making it an ideal choice for OEM/ODM factories and cosmetic brands looking to expand production capacity.
