Automatic Air Cushion Filling Machine, 4 nozzles
TECHNICAL PARAMETER
|
Item |
Specification |
| Model | Automatic Four Nozzle Air Cushion Filling Machine |
| Filling System | 4 Servo Filling Nozzles |
| Suitable Compact Size | Ø25–68 mm (Customizable) |
| Filling Volume | 3–30 ml |
| Filling Accuracy | ±0.5% |
| Hopper Capacity | 20–50 L |
| Production Capacity | 32–44 pcs/min |
| Filling Pattern | Single Color / Dual Color / Customized |
| Voltage | AC220V, 1P, 50/60Hz |
| Power | 10 KW |
| Air Pressure | 0.6–0.8 MPa |
| Machine Dimension | 6950 × 2300 × 2170 mm |
| Optional Function | 180° Flip System for Labeling Line |
Application

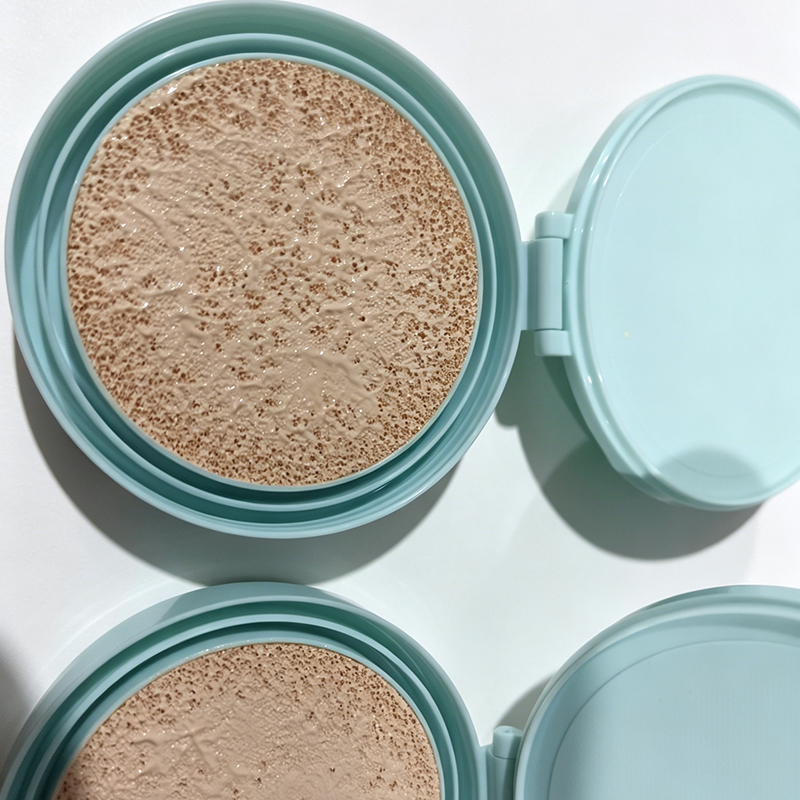

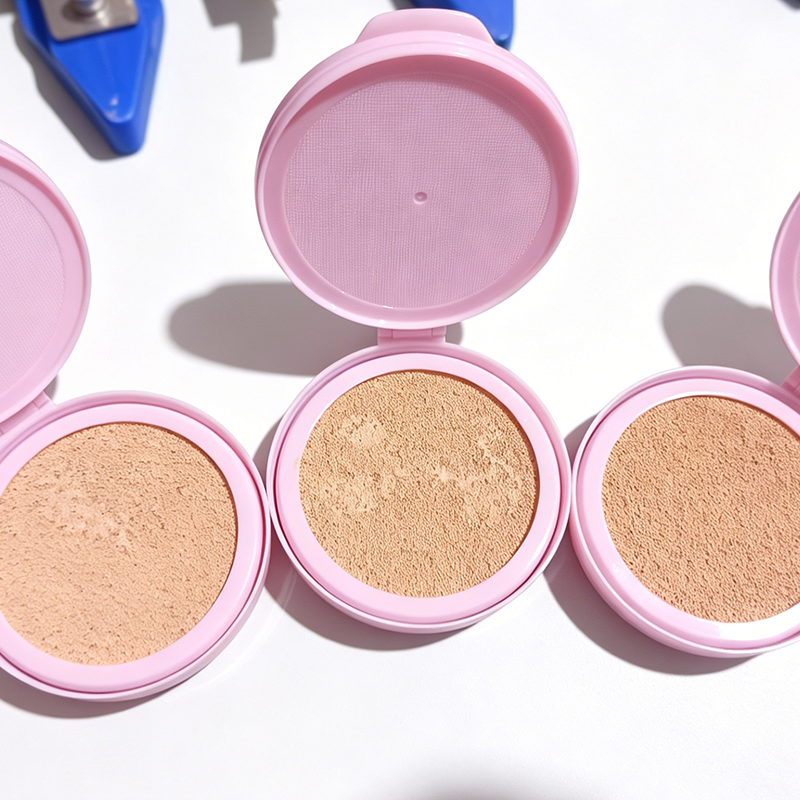

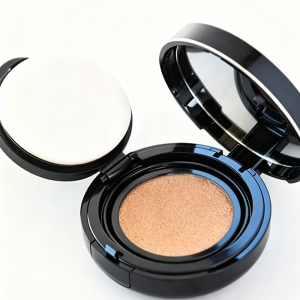

The GIENICOS Automatic Four Nozzle Air Cushion Filling Machine is developed for fully automated production of premium air cushion cosmetics. It is suitable for filling BB Cream, CC Cream, Cushion Foundation, Concealer, Cream Blush, Highlighter and other liquid or cream-based formulations.
From empty compact loading to finished product discharge, the machine performs a complete production process automatically. An optional 180° flip system turns finished products over before discharge, allowing them to be transferred directly to labeling, printing or downstream packaging equipment without additional handling.
Designed for cosmetic manufacturers with high production requirements, the machine integrates seamlessly into automatic production lines while maintaining stable product quality.
Features

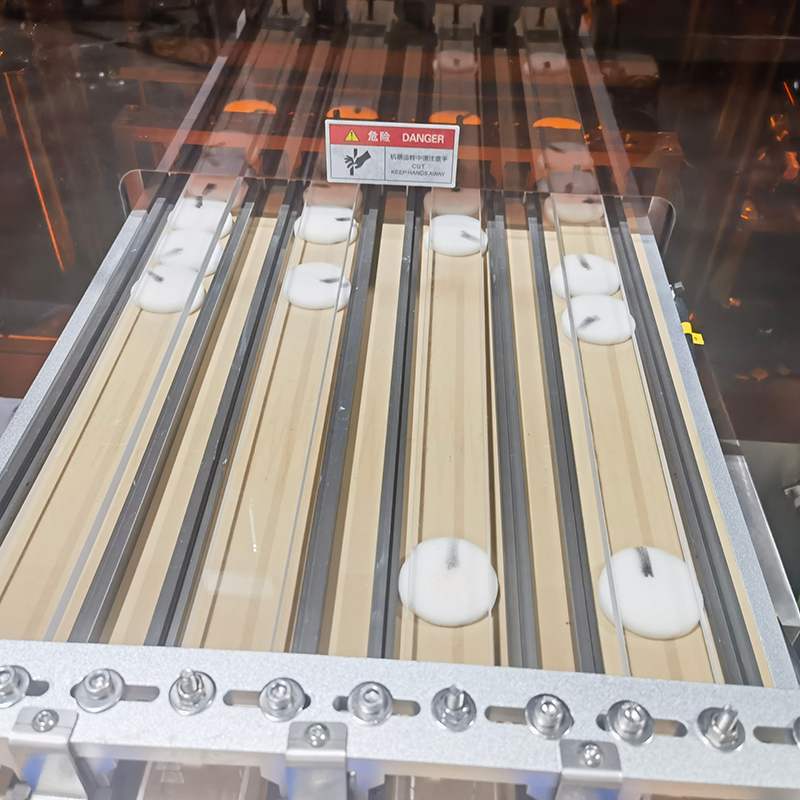

♦ Fully automatic production line including inner container loading, vacuum cleaning, sponge loading, filling, cream leveling, overflow inspection, ring feeding, ring pressing, reject inspection and finished product unloading.
♦ Four servo-controlled filling nozzles provide accurate, synchronized filling for continuous production.
♦ Optional 180° automatic flip device inverts finished cushion compacts, making them ready for automatic labeling and subsequent packaging processes.
♦ Circular guide rail conveying system ensures smooth product transfer and stable production flow.
♦ Modular filling unit with quick-release design allows convenient cleaning and faster product changeovers.
♦ Compatible with customized molds and interchangeable nozzles for different compact sizes and filling patterns.
♦ Servo-controlled movements deliver stable positioning throughout the production process.
♦ Cosmetic-contact components are manufactured from SUS316L stainless steel for hygienic and reliable production.
Why choose this machine?
Ready for Fully Automated Production：The machine integrates multiple production steps into one continuous process, reducing manual intervention and improving manufacturing consistency from loading to finished product output.
Seamless Connection with Labeling Lines：The optional 180° flip system automatically reorients finished cushion compacts, enabling direct connection to automatic labeling or downstream packaging equipment. This helps manufacturers build a more efficient production line while reducing additional handling.
Consistent Filling Across Four Nozzles：A synchronized servo filling system ensures every nozzle delivers stable filling performance, helping maintain consistent product quality even during long production runs.
Minimize Downtime：The modular filling structure and quick-release components simplify maintenance, shorten cleaning time and allow faster formula or product changeovers.
Adaptable to Different Product Designs：Interchangeable molds and filling nozzles make it easy to manufacture various compact sizes while supporting single-color, dual-color and customized filling effects for different cosmetic collections.
Designed for Scalable Cosmetic Manufacturing：Whether producing for international beauty brands or cosmetic OEM/ODM customers, the machine offers a reliable solution for expanding production capacity while maintaining premium product quality.
Application
Specially designed for filling air cushion BB cream and CC cream, supporting single-color and multi-color production.
Features
1. The machine is controlled by servo motors, ensuring accurate positioning.

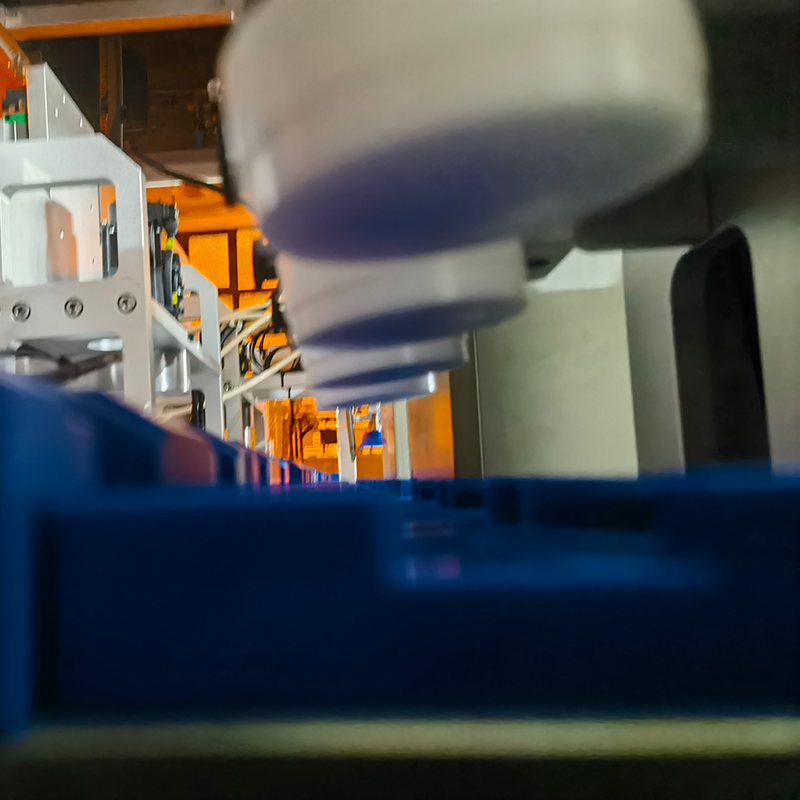

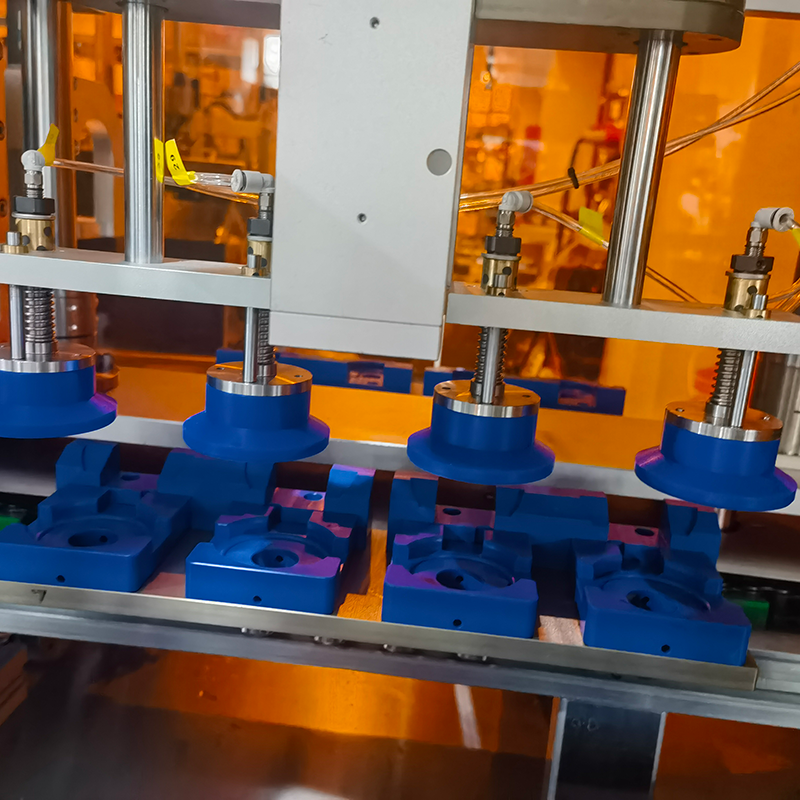

2. Full automatic processes: automatic inner container loading, vacuum clean, sponge place, filling, surface treating, overflow detection, ring loading & pressing, defective product rejection and finished product take out.
3. Suitable for single-color and double-color production. Matched with custom-designed molds for high production efficiency.
4. Quick-release filling system, easy for product changeover and cleaning.

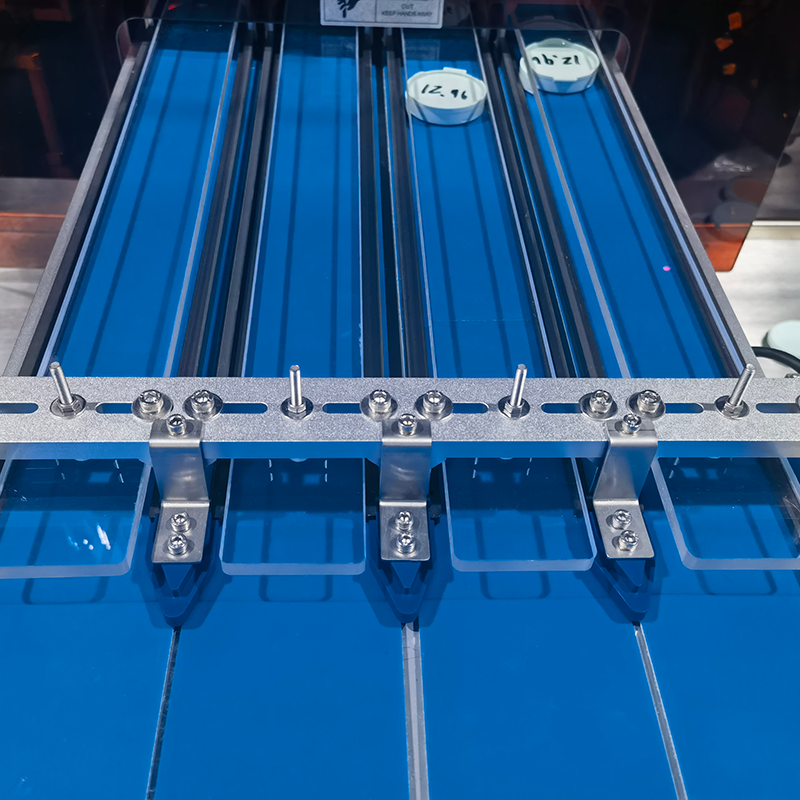

5. Circulating feeding platform with circular guide rail, effectively improving output.
Technical Specifications
1. Voltage: 220V, Power: 10kW
2. Machine dimensions: 6950×2300×2170mm
3. Working air pressure: 0.6~0.8 MPa
4. Hopper volume: 20~50L
5. Filling volume: 3~30ml
6. Filling accuracy: ±0.5%
7. Production capacity: 32~44 pcs/min
8. Inner container diameter: Φ25~68mm
9. Filling nozzles can be customized and replaced
