JSFL Single Nozzle Filling Machine (Tank Body Lifting Model)

  • JSFL Single Nozzle Filling Machine (Tank Body Lifting Model)

Short Description:

This is a multifunction filling machine used for hot pouring process. It is suitable for filling wax product such as: lipbalm, herb balm, deodorant stick, sunstick, lip cream, body balm, cleaning cream, etc into small tube, godet, pan, jar or stick bottle etc. It adopts servo driven piston filling ensures précised filling volume. Four options for the filling process:

Diving Filling

Fixed Position Filling

Continuously Filling

Stop Filling


Product Detail

Product Tags

CC  Brief introduction

This is a multifunction filling machine used for hot pouring process. It is suitable for filling wax product such as: lipbalm, herb balm, deodorant stick, sunstick, lip cream, body balm, cleaning cream, etc into small tube, godet, pan, jar or stick bottle etc. It adopts servo driven piston filling ensures précised filling volume. Four options for the filling process:

Diving Filling

Fixed Position Filling

Continuously Filling

Stop Filling

产品图片2
产品图片3
企业微信截图_17821930187244

CC  Technical Parameter

One 20L Dual Layer tank with heating/mixing/vacuum function, parts contact with bulk is SUS316L. Tank body auto lift up for diving filling and easy to add bulk.

Machine material: SUS304 and aluminum frame

Filling system adopts servo drive, Mitsubishi Servo

Touch screen: Weinview brand

Main electric elements: Schnedier

Filling Volume: 0-20ML

(Can equip with bigger size piston pump 20-50ml or 50-150ml)

Voltage: 220V 1P 50/60HZ

Filling speed:  20-30pcs/min (5g as example)

Filling Precision: +-0.1g (5g as example)

Valve, cylinder and nozzle with warm keeping function.

Can be equipped with 1.5M conveyor for auto filling purpose, conveyor speed is adjustable.

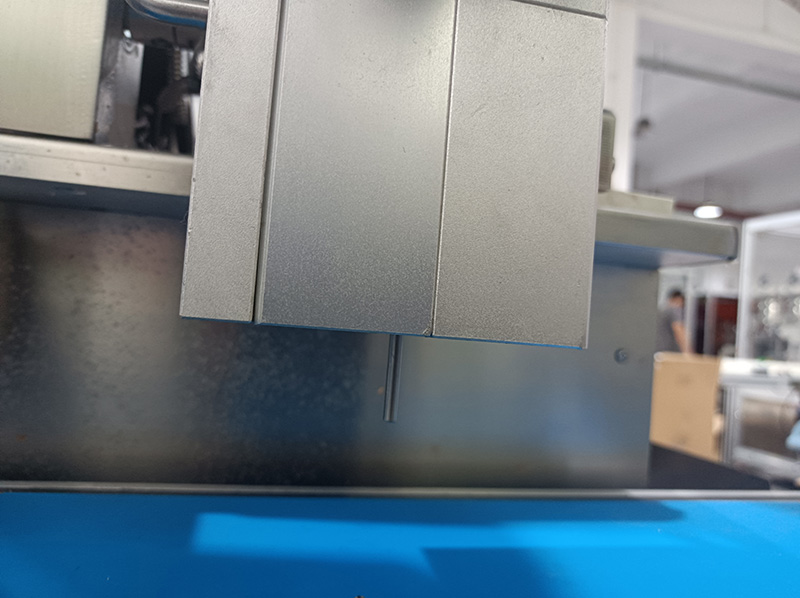

产品细节图

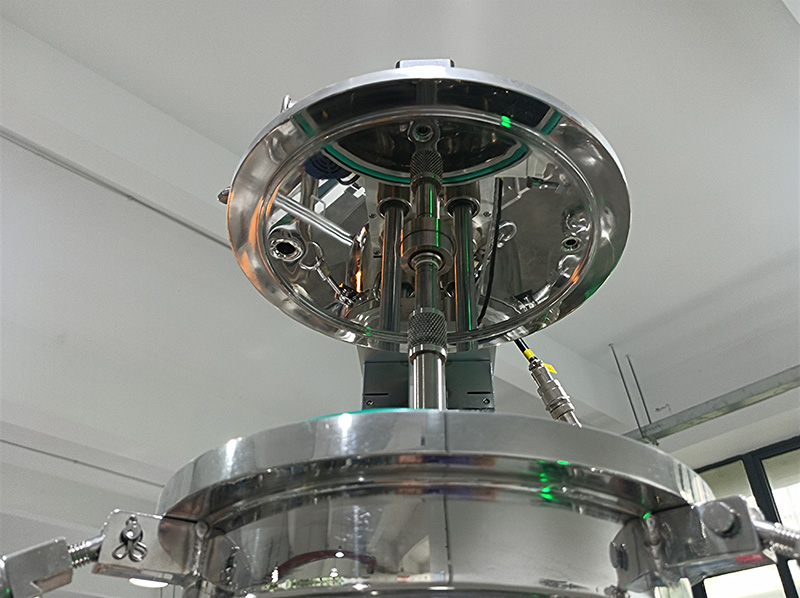

产品细节图2

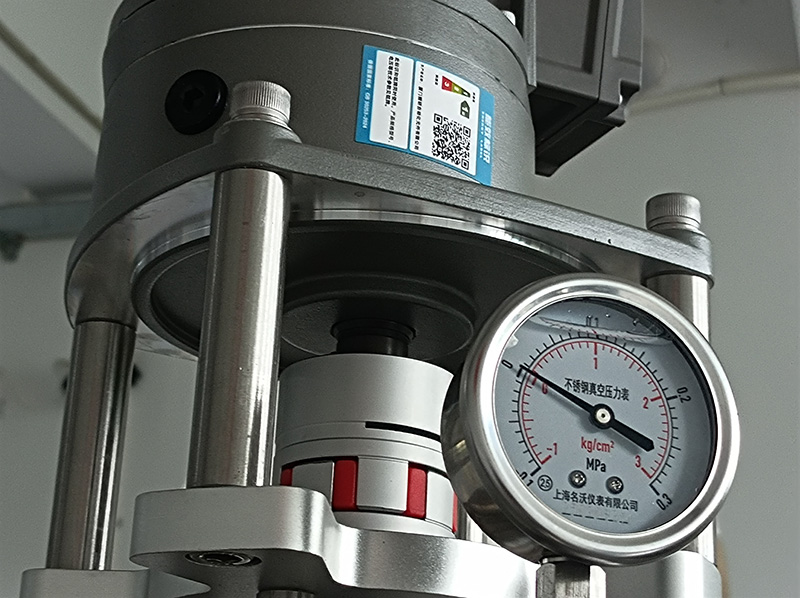

产品细节图3

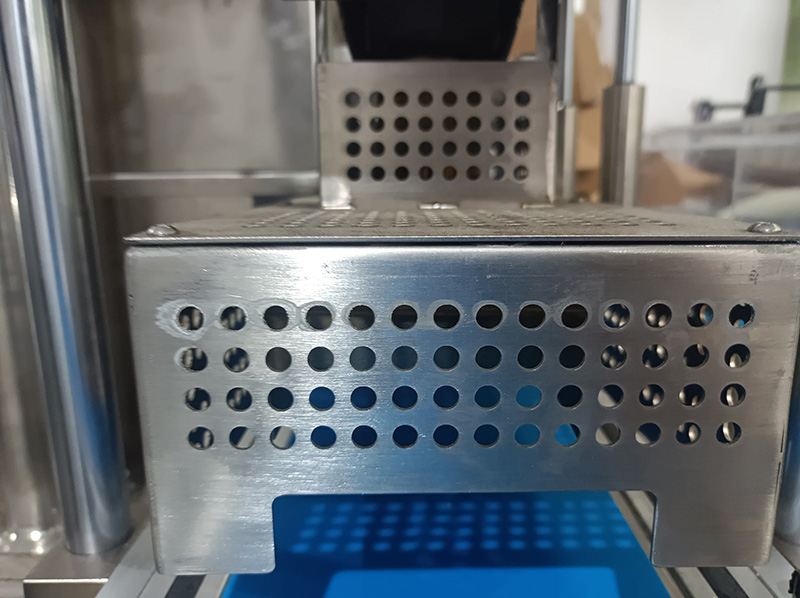

产品细节图4

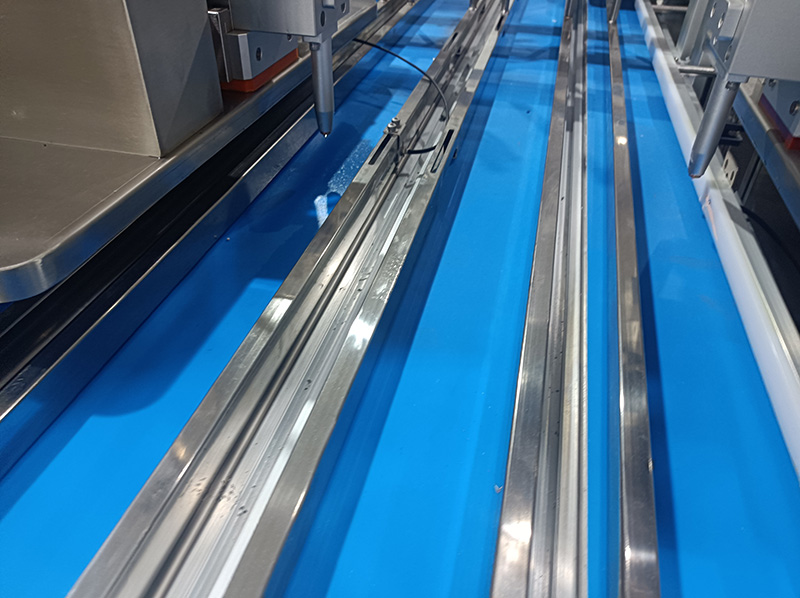

产品细节图5
