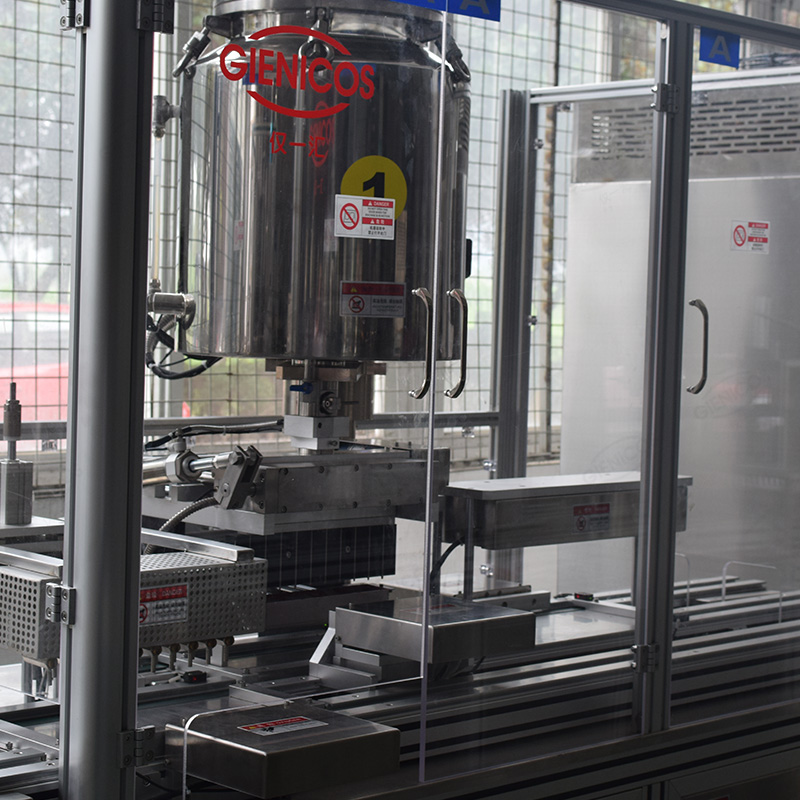

Half Body Silicone Lipstick Mold Filling Production Line

Short Description:

Brand: GIENICOS

Model: JSM

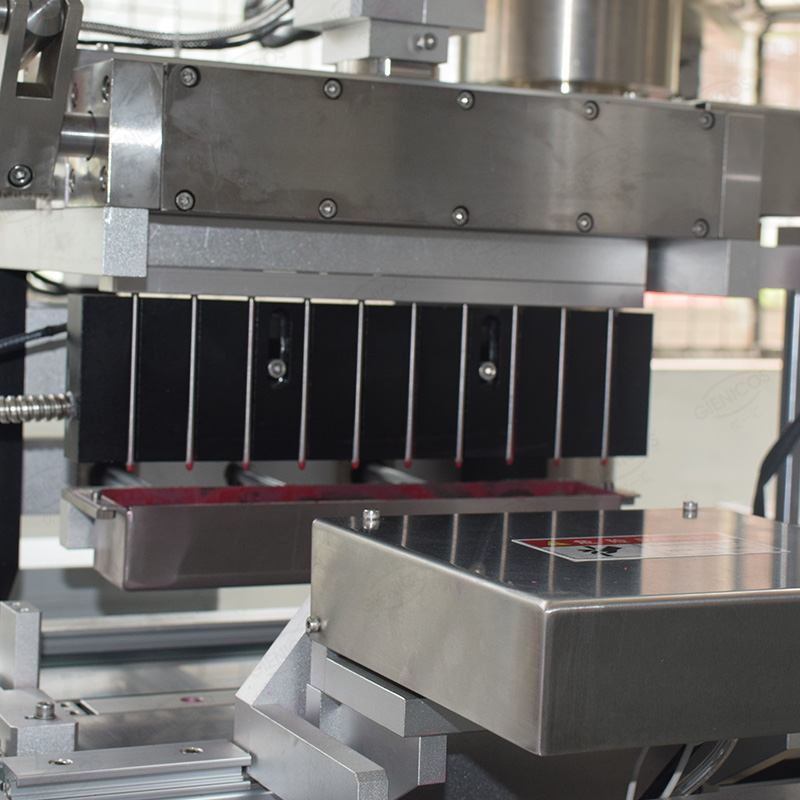

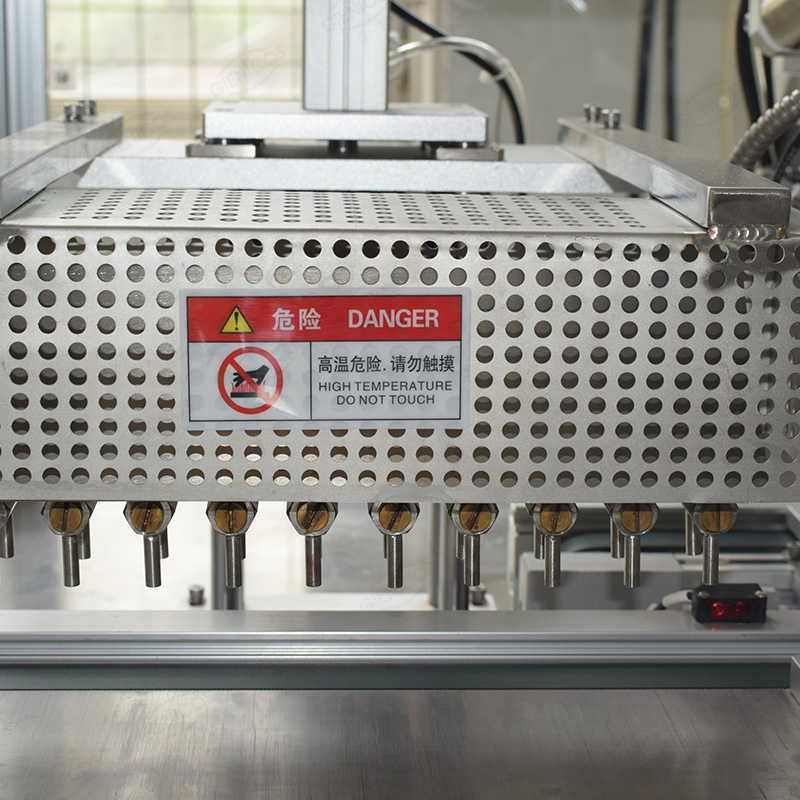

This line is designed for both aluminum mold and half-silicone mold to produce high quality lipstick. It has 10 or 12 filling nozzles, the filling speed could reach 30-50pcs/min. Cooling temp. is adjustable, conveyor speed is adjustable. The demolding and screwing down machine is high efficiency.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Outer dimension	4660X2825X2305mm (LxWxH)
Voltage	AC380V,3P,50/60HZ
Power	17KW
Air consumption	0.6~0.8Mpa, ≥800L/min
Output	Metal mold:2160-3600pcs/hour silicone mold:1800-3000pcs/hour
Weight	1200kg
Operator	3-4 persons
Voltage	AC380V,1
Mold	Silicone mold

Application

- - - 1. Model JSM is a semiauto lipstick production line for both alu.mold and silicone mold by changing spares. It is able to be used for normal lipstick, mini lipstick, lipbalm etc in different shape. Logo or pattern is allowed to be done in the silicone mold.

Features

◆ Human-machine interface, touch screen control, easy operation.
◆ 20L Three layer tank with SUS304 material, and the Inner layer material is SUS316L:
◆ Tank has dual temp.control: one for the bulk, one for the heating oil;
◆ Adopts R404A media for the cooling machine.
◆Adopts France brand compressor for the cooling machine
◆ Adopts Switzerland Leister Gun for pre-heating, lamp pipe for remelting the shrinking hole after filling.

Why choose this machine?

This machine has high safety and low noise.
High standard manufacturing process, adopts SUS304 and SUS316L material.
Low power consumption and no pollution. Easy to control.
Online quality management is possible.
The stroke and speed of the slider can be freely programmed.
The mechanical transmission structure is simplified, the stroke is controllable, and the power consumption is small.
