GLU-900 Full Silicone Lipstick Filling Machine

Short Description:

Designed for cosmetic manufacturers requiring high-quality silicone mold production, the GLU-900 offers an integrated solution for multiple stick products with quick format changeover.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Item	Specification
Model	GLU-900
Application	Full Silicone Mold Lipstick / Slim Lipstick / Mini Lipstick / Lip Balm / Foundation Stick
Filling Method	Servo Driven Filling
Production Capacity	Up to 900 pcs/hour (Depending on formula and operator)
Melting Tank	30L Vacuum Mixing Tank
Tank Quantity	1 Set
Cooling Temperature	-20℃ ~ -1℃
Silicone Mold Capacity	112 Cavities
Suitable Package Size	Diameter 8-45 mm / Height 40-140 mm
Voltage	3P / 380V / 50-60Hz
Maximum Power	23KW
Air Pressure	≥0.6MPa
Mold Heating	Swiss Leister Hot Air System
Cooling System	Industrial Compressor Cooling

Application

Designed for cosmetic manufacturers requiring high-quality silicone mold production, the GLU-900 offers an integrated solution for multiple stick products with quick format changeover.

Suitable for:

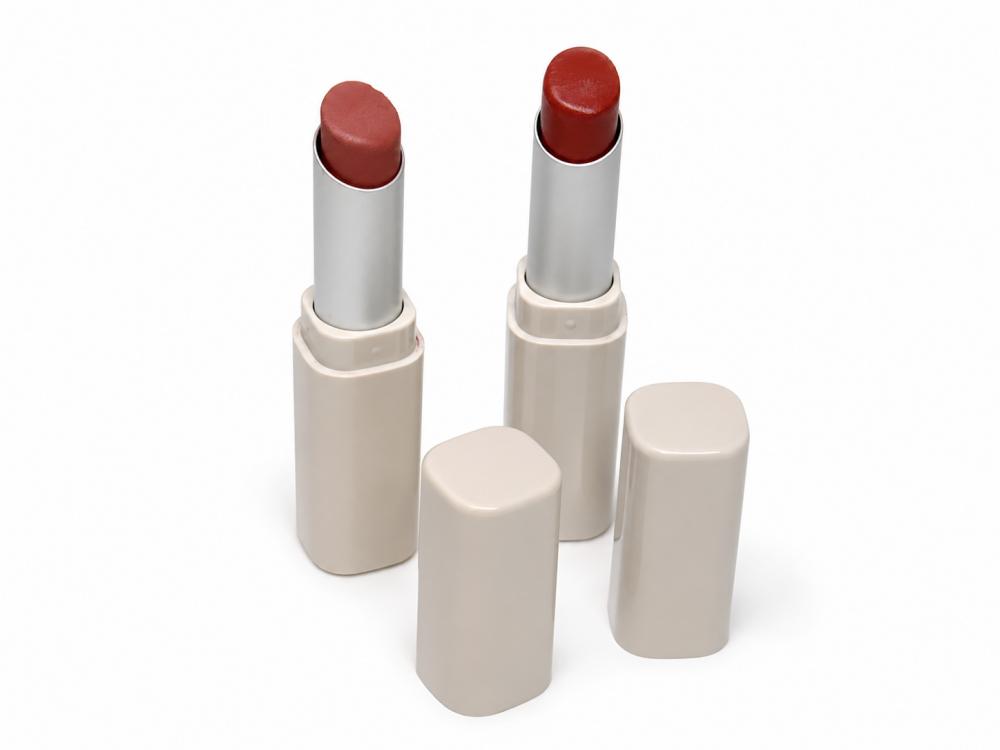

● Traditional Lipstick

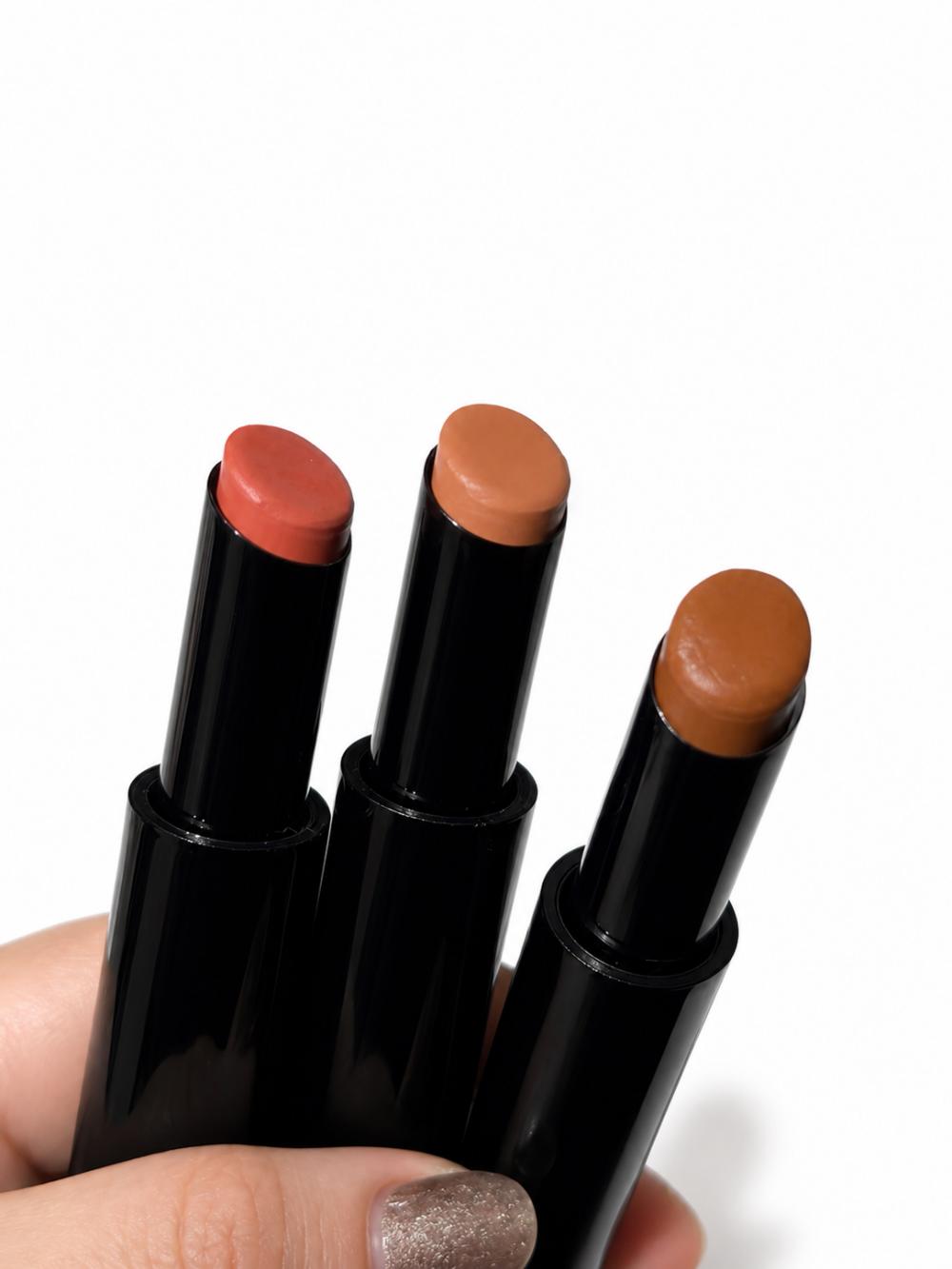

● Slim Lipstick

● Mini Lipstick

● Lip Balm

● Foundation Stick

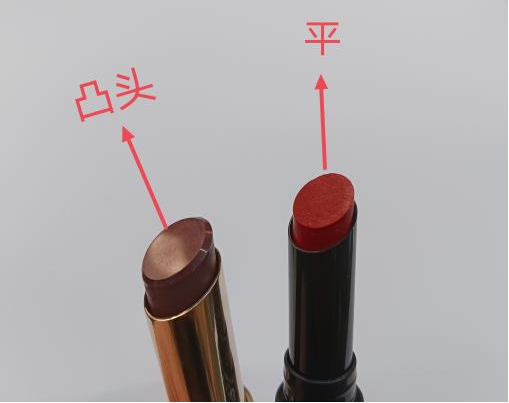

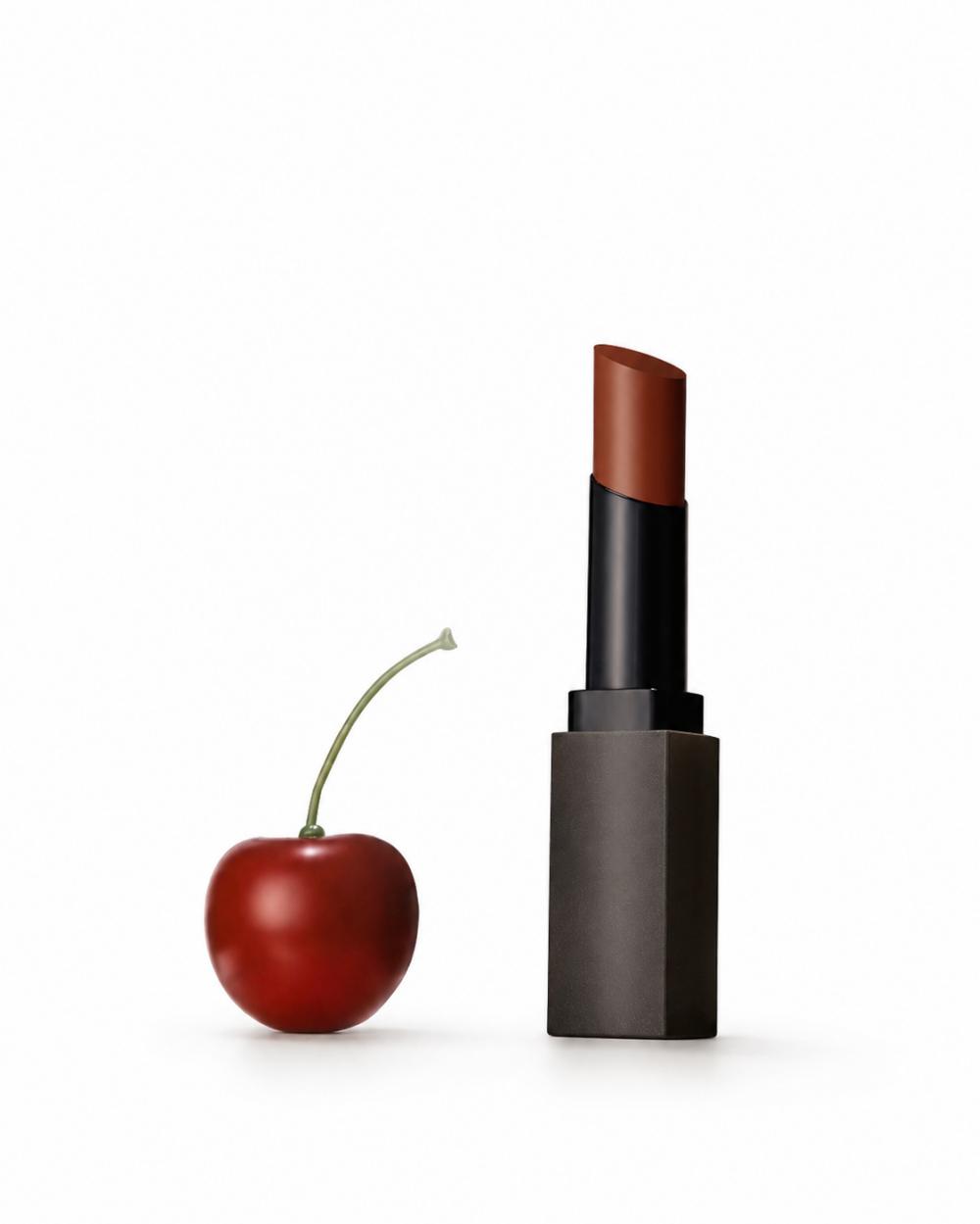

● Slant Shape (Stello Style) Lipstick

The machine only requires changing corresponding molds and holders to switch between different lipstick formats, reducing downtime while increasing production flexibility.

Features

Fully Integrated Lipstick Production Process

The GLU-900 combines melting, vacuum mixing, mold preheating, servo filling, remelting, cooling, vacuum demolding and automatic screw-down into one streamlined production line, minimizing manual handling while improving consistency.

Vacuum Mixing Melting Tank for Stable Formula Preparation

The 30L movable melting tank integrates heating, vacuum degassing and mixing, ensuring homogeneous bulk while allowing quick color changes and convenient cleaning between batches.

Dedicated Pre-Stirring System for Pearlescent Formulas

An additional pre-stirring station continuously agitates the material before filling, preventing pigment sedimentation and maintaining consistent color distribution throughout production.

Servo Diving Filling with Heated Nozzle

The servo-controlled diving filling system fills from the bottom upward while the heated nozzle maintains stable material temperature, helping produce smooth lipstick surfaces and precise filling weights.

Intelligent Mold Preheating & Remelting Technology

The machine uses Swiss hot-air technology for both mold preheating and post-filling remelting. Proper thermal control minimizes shrinkage holes, trapped air and surface imperfections, resulting in a more refined lipstick appearance.

Efficient Industrial Cooling System

A bottom-mounted refrigeration compressor combined with an upper heat dissipation system provides stable cooling performance, enabling reliable lipstick solidification while maintaining machine stability during long production runs.

Gentle Vacuum Demolding

Vacuum-assisted demolding protects delicate lipstick tips from deformation or scratches, making it especially suitable for full silicone mold production where appearance quality is critical.

Automatic Mold Inspection

Integrated sensors verify mold availability and confirm complete demolding before the next filling cycle, reducing production errors and protecting silicone molds.

Fast Changeover for Multiple Lipstick Designs

Replaceable grippers, positioning fixtures and molds allow quick conversion between different lipstick packages and shapes without replacing the entire machine.

Why choose this machine?

Specialized for Full Silicone Mold Production：Unlike conventional lipstick filling equipment, the GLU-900 is engineered specifically for full silicone mold manufacturing, ensuring excellent surface finish and high-quality lipstick tip formation.

One Machine for Multiple Products：From regular lipstick and slim lipstick to lip balm and foundation sticks, manufacturers can expand product offerings using a single platform simply by changing molds and accessories.

Consistent Product Quality：Servo filling, intelligent temperature management, mold inspection and vacuum demolding work together to reduce common production defects such as air bubbles, shrinkage marks and inconsistent filling volumes.

Improved Production Efficiency：Automatic mold detection, continuous process integration and quick changeover significantly reduce manual operations while increasing production consistency for medium-volume lipstick manufacturing.

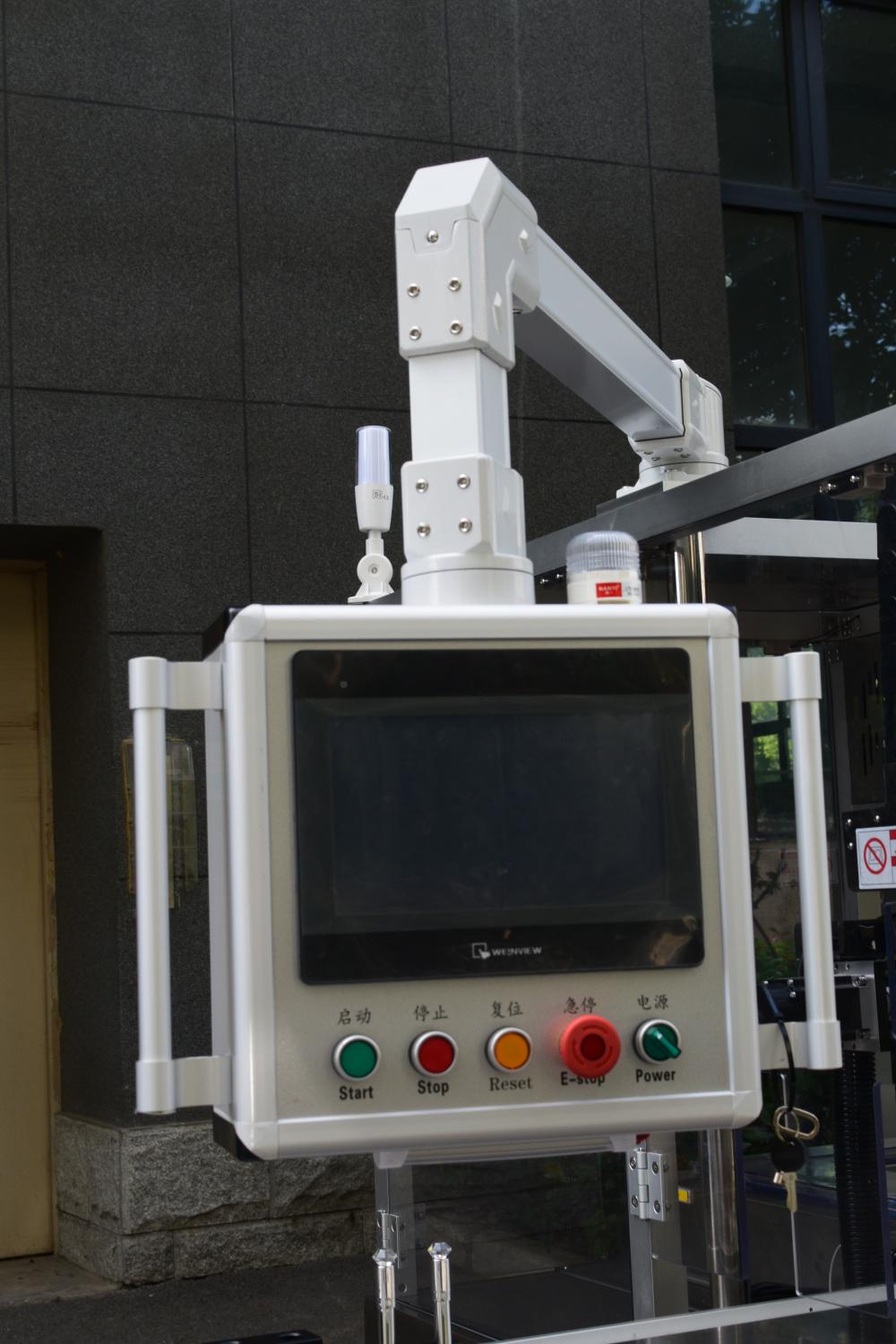

Cosmetic-Grade Components：The machine is equipped with internationally recognized components, including Mitsubishi servo control, Mitsubishi PLC, Panasonic/SICK sensors, Weinview HMI and Swiss Leister hot-air technology, ensuring reliable long-term operation.

Equipment Description

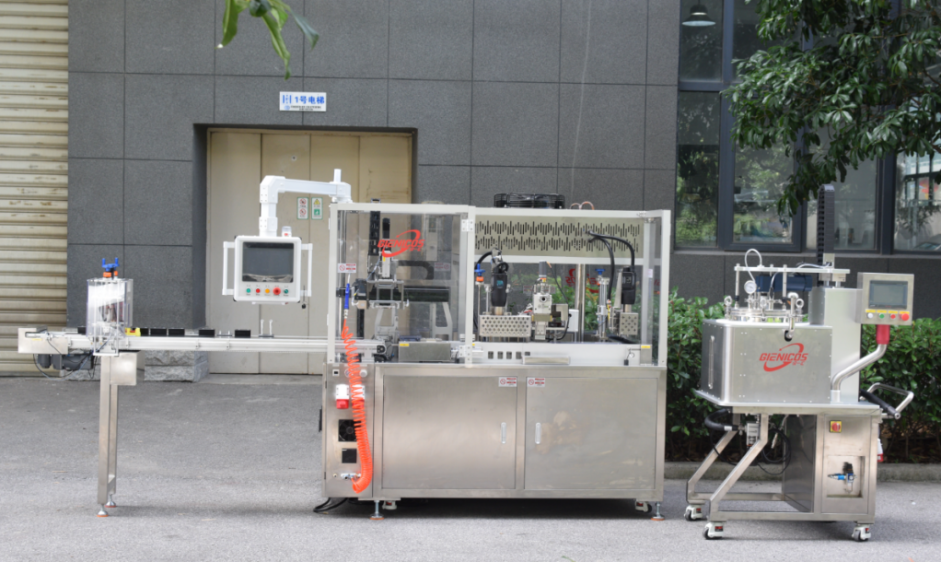

GLU-900 FULL SILICONE LIPSTICK FILLING MACHINE

● Photo FYI

● Brief introduction

This machine is suitable for the production of various lipsticks, including regular lipsticks, slim lipsticks, mini lipsticks, lip balms and foundation sticks. Only replacement of corresponding spare parts is required for different products. It has the function of material melting, pre-stirring before filling, mold detect, mold preheating, auto mold filling, remelting,cooling, auto demolding and screwing down.

●Working process:

NORMAL LIPSTICK:

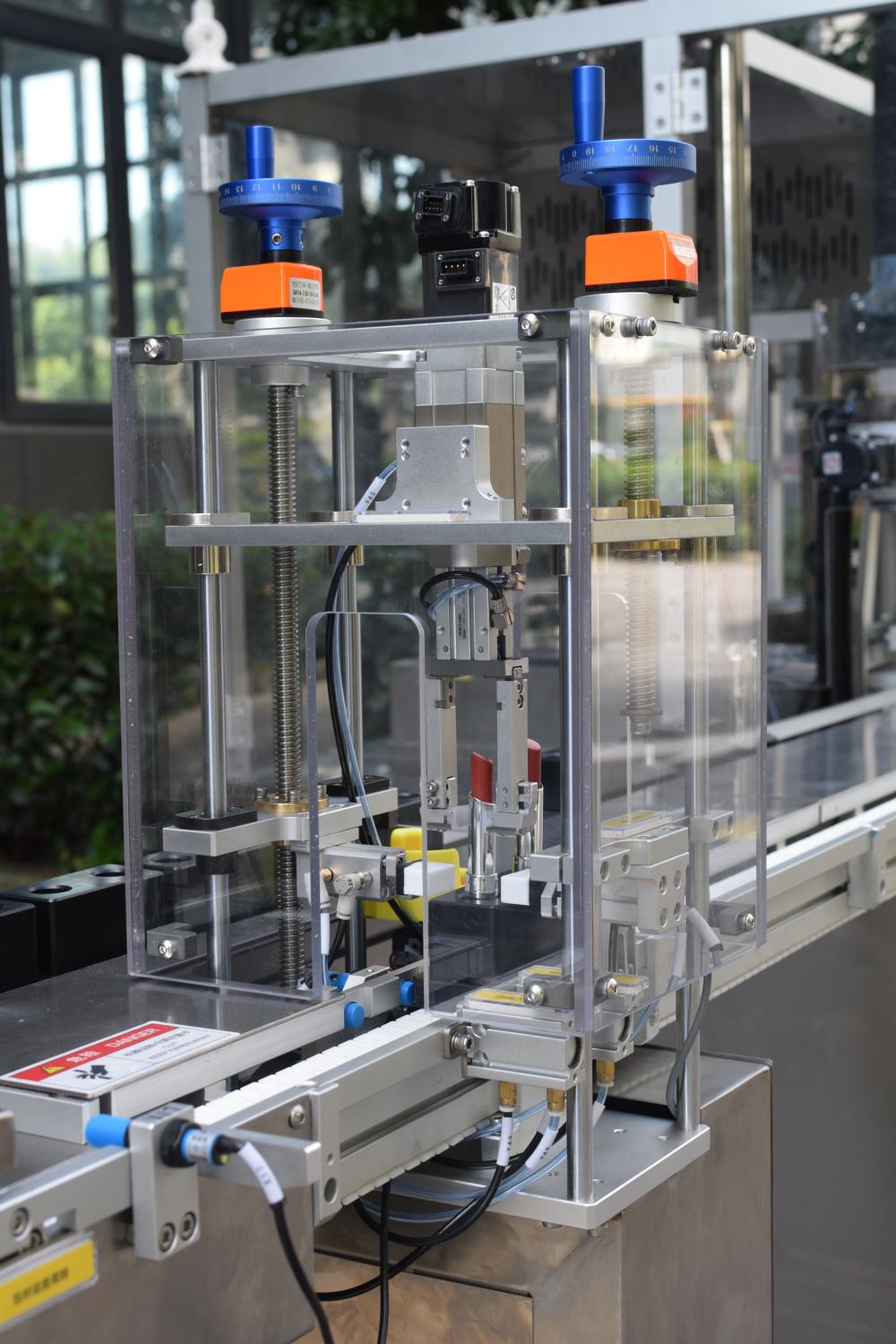

Manual Put Container Into Holder——Material melting——Mold detect——Mold preheating—— Automatic mold filling——Remelting(Remove shrink hole)———Cooling——Automatic demolding——QC——Automatic screwing down (Full silicone lipstick Style)

SLANT SHAPE(STELLO LIPSTICK):

Manual place package on positioning Tool ——Material melting——Mold detect——Mold preheating—— Automatic mold filling——Remelting(Remove shrink hole)———Cooling——Automatic demolding——QC——Automatic screwing down (Full silicone lipstick Style)

●Features

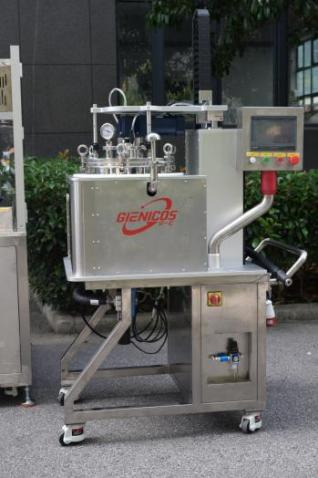

a. Equipped with a mobile 30L melting tank with mixing vacuum and heating function.Can fast change color and clean.

30L melting tank

b. A pre-stirring design benefits for pearlescent materials

c. Auto pumping function: A photoelectric sensor detects material shortage and stops the machine automatically.

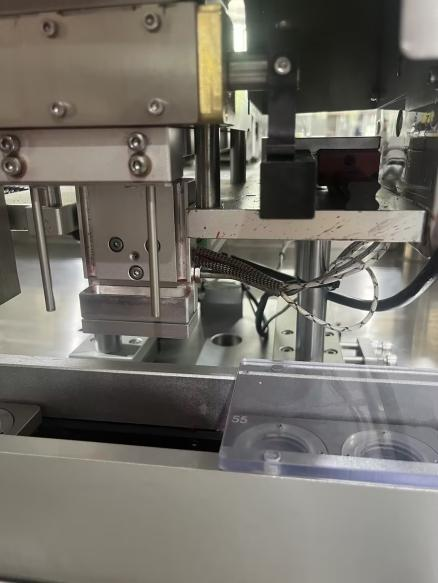

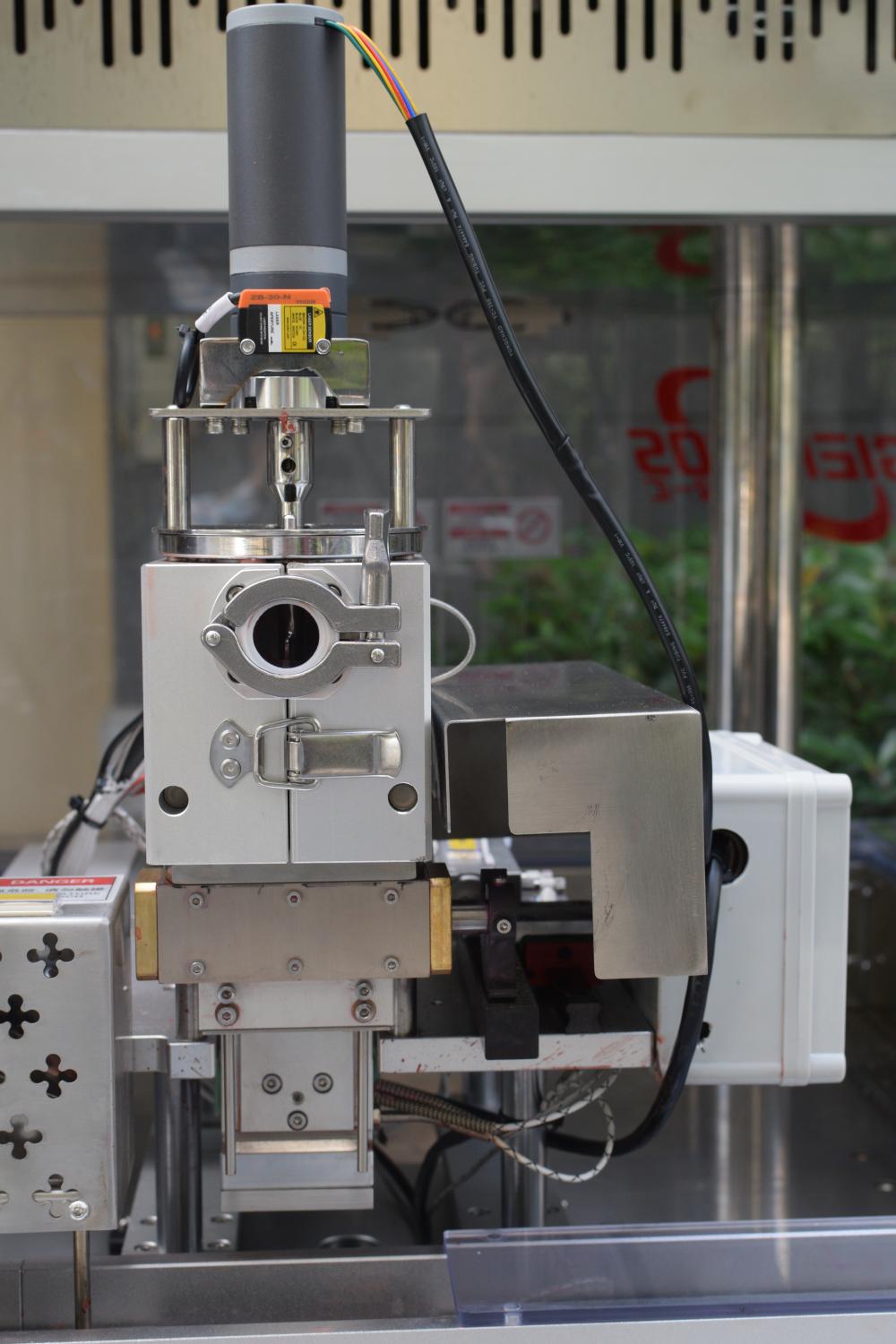

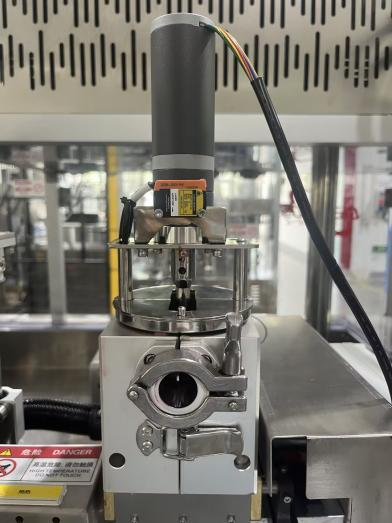

d. Adopts diving filling design, and the filling nozzle comes with heating function.

Pre-stirring Tank before Filling

e. Mold preheating system: Proper mold preheating helps prevent air holes in the finished lipstick. Air holes are mainly caused by:

Insufficient preheating of the silicone mold.

Cosmetic bulk that is too viscous or insufficiently heated.

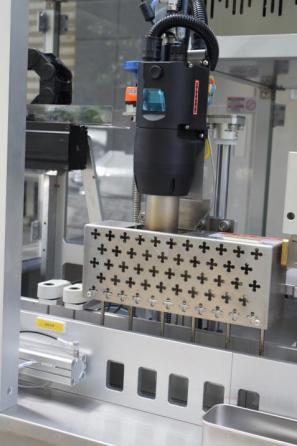

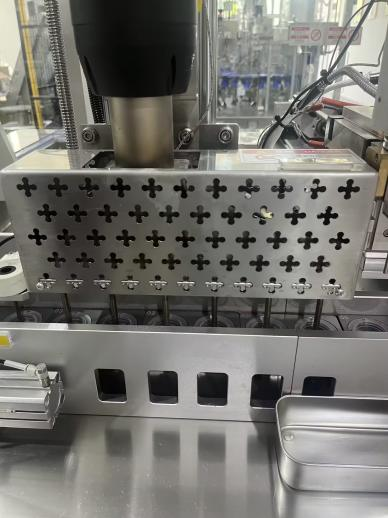

Hot air gun for mold heating

f. Remelting design:

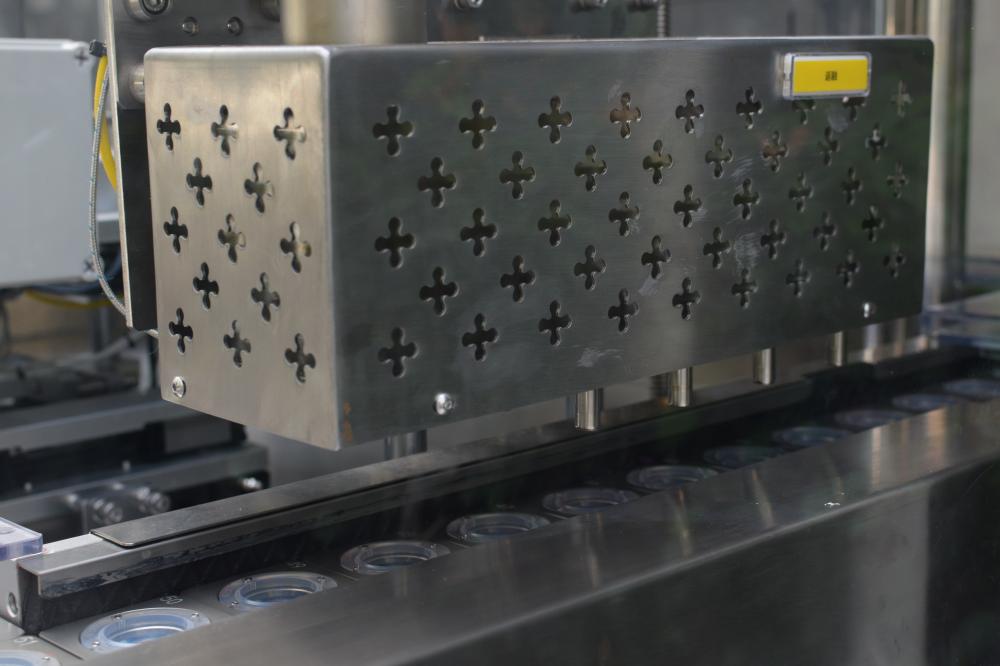

Hot air gun for remelting

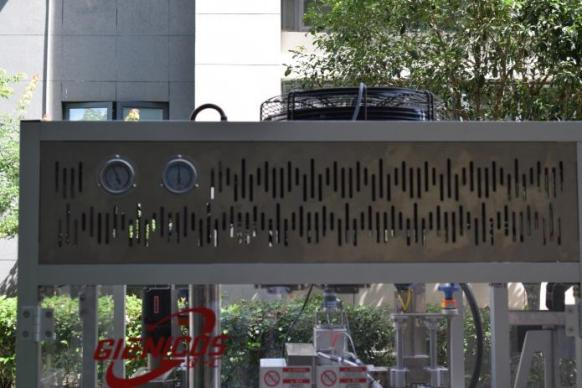

g. Efficient cooling system: The refrigeration compressor is installed at the bottom of the machine, using environmentally friendly refrigerant,while the top is equipped with a heat dissipation fan for stable cooling performance.

heat dissipation fan

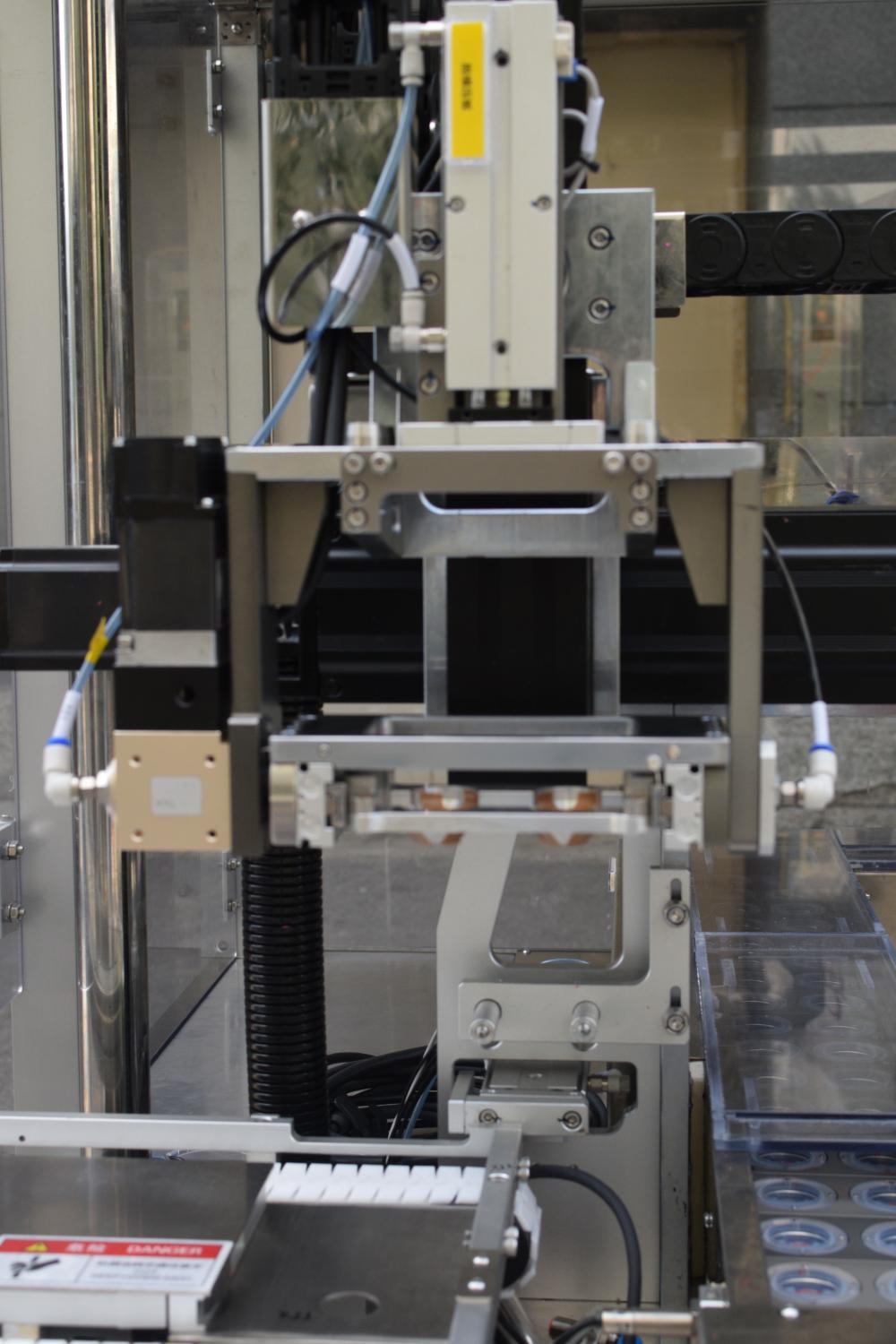

h. Vacuum demolding is adopted for silicone molds, ensuring gentle product demolding to keep perfect shape.

i. Fitted with a detection function to check whether silicone molds are fully demolded prior to refilling.

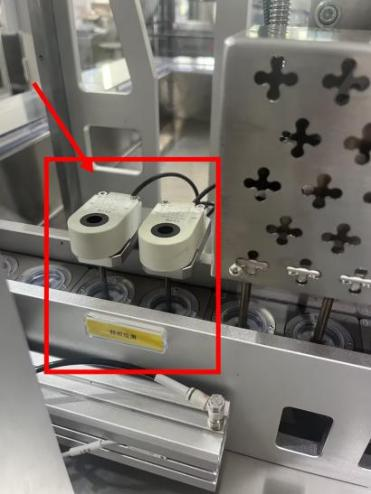

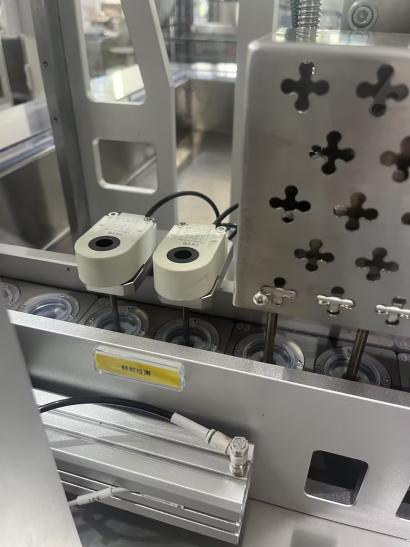

Mold detection

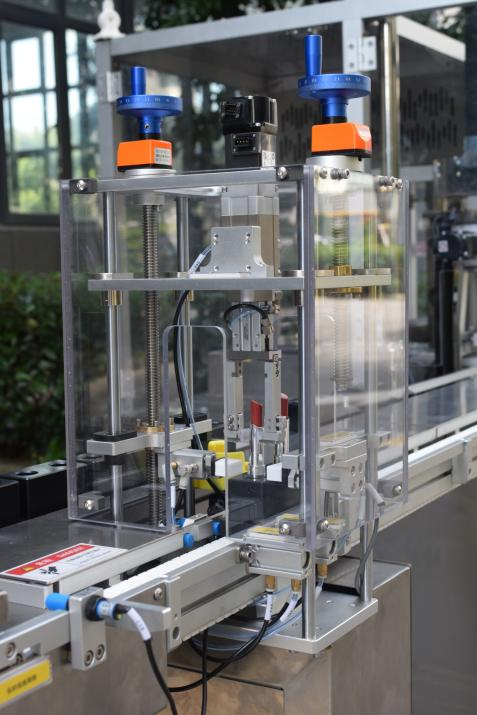

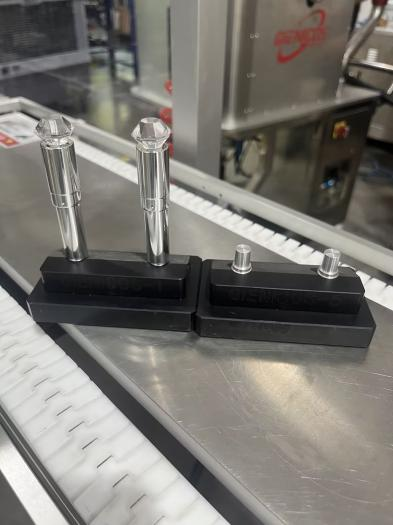

j. Demolding grippers are replaceable to accommodate different lipstick package designs, allowing quick product changeover.

k. 112 pcs silicone mold involved in the machine.

● Specification

Model	GLU-900
Application	Normal lipstick/Slant Lipstick
Filling Method	Servo driven
Filling Speed	900pcs/hours (depends on bulk formula and operator)
Lowest Cooling Temp	-20℃ to-1℃
Tank Volume	30L
Tank QTY	1
Packing Size	8-45MM Dia. 40-140MM Height
Voltage	Filling Part, 3P/380V, 50-60HZ
Power	MAX 23KW
Air supply:	0.6MPA above
Hot air gun	Leister from Switzerland
Cooling Compressor	KANGSHIJIE
