GLU-1300 FULL SILICONE Lipstick Filling Machine

Short Description:

The GLU-1300 FULL SILICONE Lipstick Filling Machine is specially designed for high-quality silicone mold lipstick production.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER

Item	Specification
Model	GLU-1300
Application	Full Silicone Lipstick / Lip Balm / Lip Care Products
Filling Method	Servo Driven Filling
Filling Nozzle	2 Nozzles
Production Capacity	1000-1300 pcs/hour
Silicone Mold Capacity	112 pcs Silicone Molds
Silicone Holding Mold	28 Sets Ring Rail System
Melting Tank	30L Mobile Tank with Heating / Mixing / Vacuum
Cooling System	Water Circulation Cooling System
Cooling Temperature	Max -20℃ to -25℃
Heating System	Swiss LEISTER Hot Air Gun
Control System	PLC Control
Main Components	Mitsubishi PLC & Servo Motor
Voltage	3 Phase / 380V / 50-60Hz
Maximum Power	28KW
Air Supply	≥0.6MPa

Application

The GLU-1300 FULL SILICONE Lipstick Filling Machine is specially designed for high-quality silicone mold lipstick production.

It is suitable for:

· Regular Lipstick
· Mini Lipstick
· Lip Balm
· Lip Care Products

With a full silicone mold structure, the machine provides excellent lipstick surface quality and supports stable production for cosmetic manufacturers requiring premium appearance and consistent output.

Features

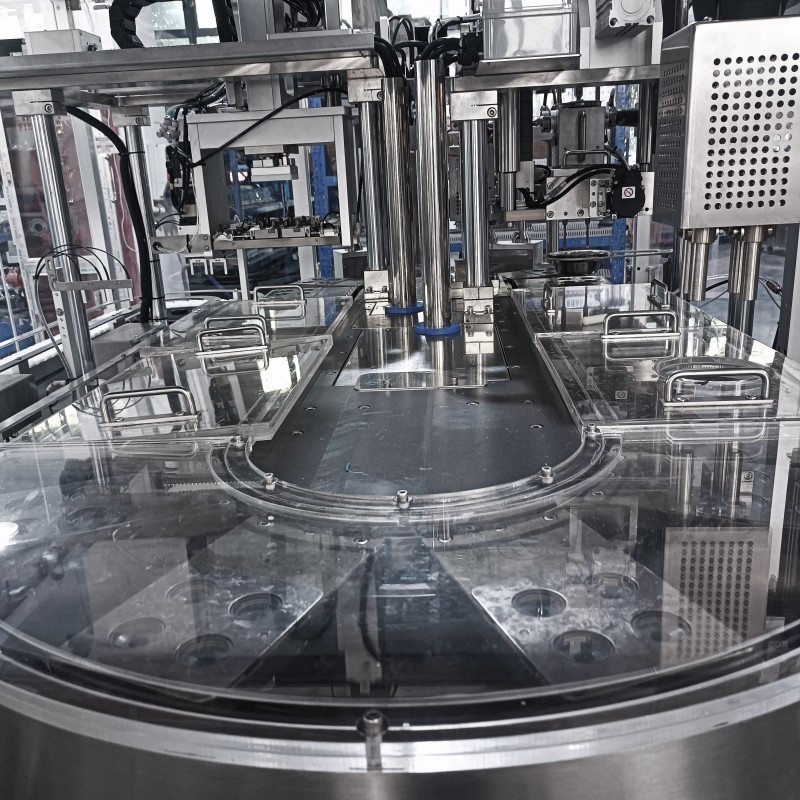

Fully Automatic Silicone Lipstick Production Process

The GLU-1300 integrates mold preheating, automatic filling, reheating, cooling, vacuum releasing, quality checking and automatic screw-down functions into one production cycle, reducing manual operation and improving production consistency.

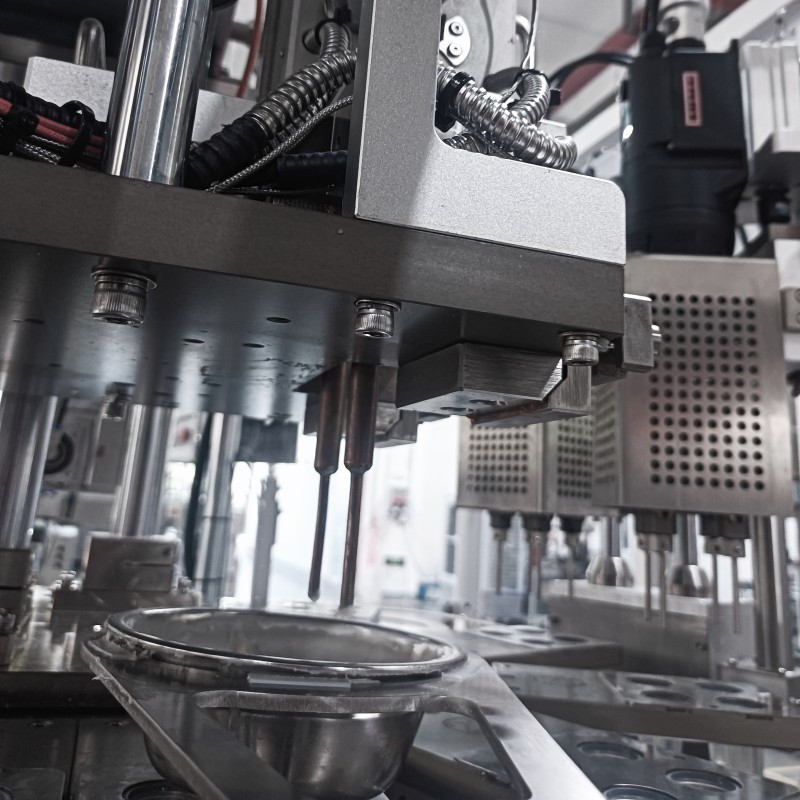

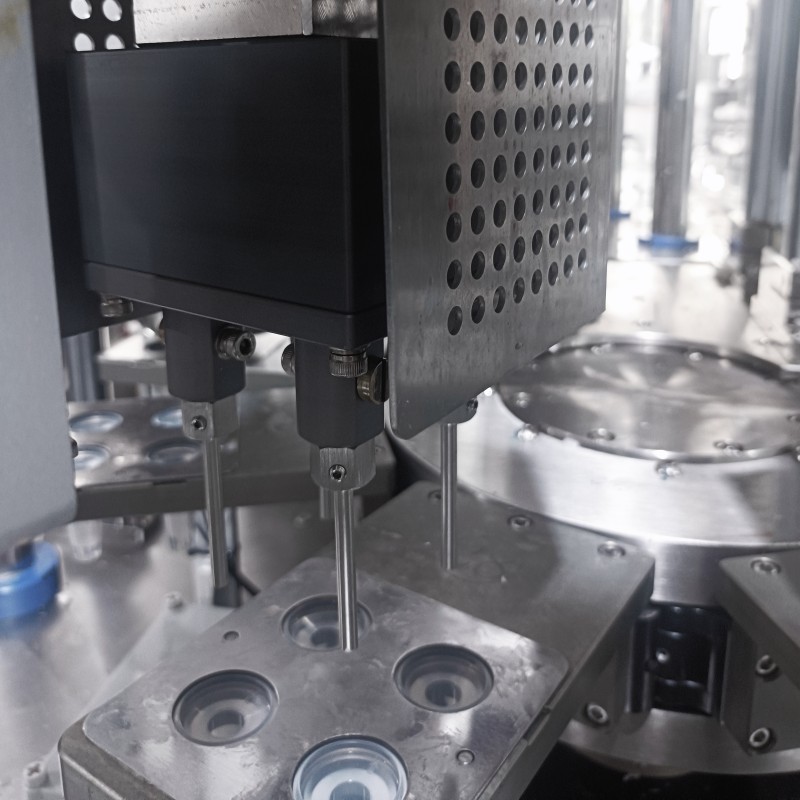

High Precision Servo Filling System

Equipped with two filling nozzles and servo-controlled filling volume adjustment, the machine allows operators to set different filling parameters through the touch screen for accurate and stable filling performance.

30L Vacuum Heating Mixing Tank

The mobile 30L tank combines heating, mixing and vacuum functions to maintain uniform lipstick material quality. The tank can automatically move up and down, with heated hose transfer to keep the bulk temperature stable during filling.

Dual Mold Preheating System

Equipped with two Swiss LEISTER hot air guns, the mold preheating temperature, airflow and heating time can be adjusted according to different formulas, helping improve lipstick surface quality and reduce filling defects.

Stable Cooling System for Fast Solidification

The separated water circulation cooling system provides stable cooling performance with a temperature range down to -20℃~-25℃, ensuring efficient lipstick forming and production stability.

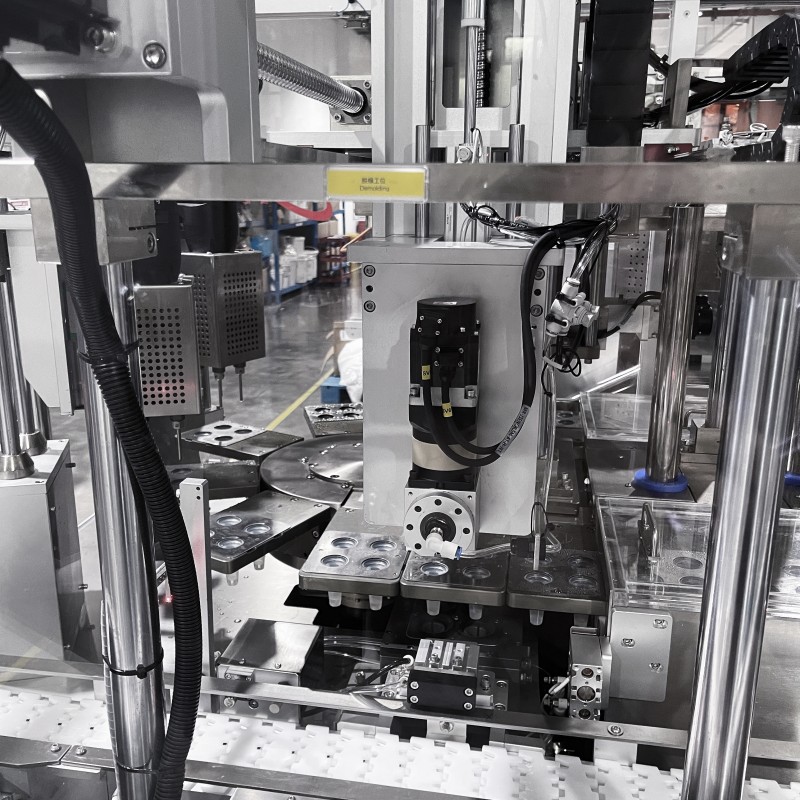

Gentle Vacuum Demolding System

The vacuum releasing system uses a two-jaw structure to gently remove lipstick from silicone molds while protecting delicate lipstick shapes. The grasper tension is adjustable according to different product requirements.

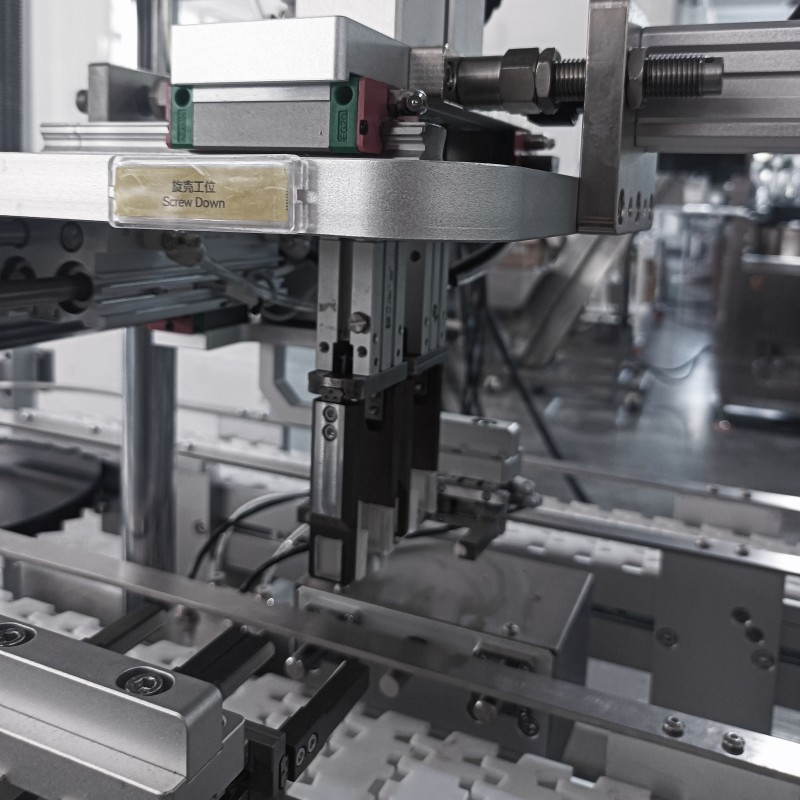

Automatic Screw-Down Function

The screw-down station uses servo control and torque adjustment to ensure accurate lipstick rotation and secure assembly, improving finished product consistency.

Flexible Production & Easy Maintenance

The machine adopts replaceable grippers and modular designs, allowing easier adjustment for different lipstick sizes and improving production flexibility.

Reliable International Components

The control system adopts Mitsubishi PLC, Mitsubishi servo motor, Weinview touch screen, SMC/Airtac cylinders and Swiss LEISTER hot air guns to ensure reliable operation and long service life.
